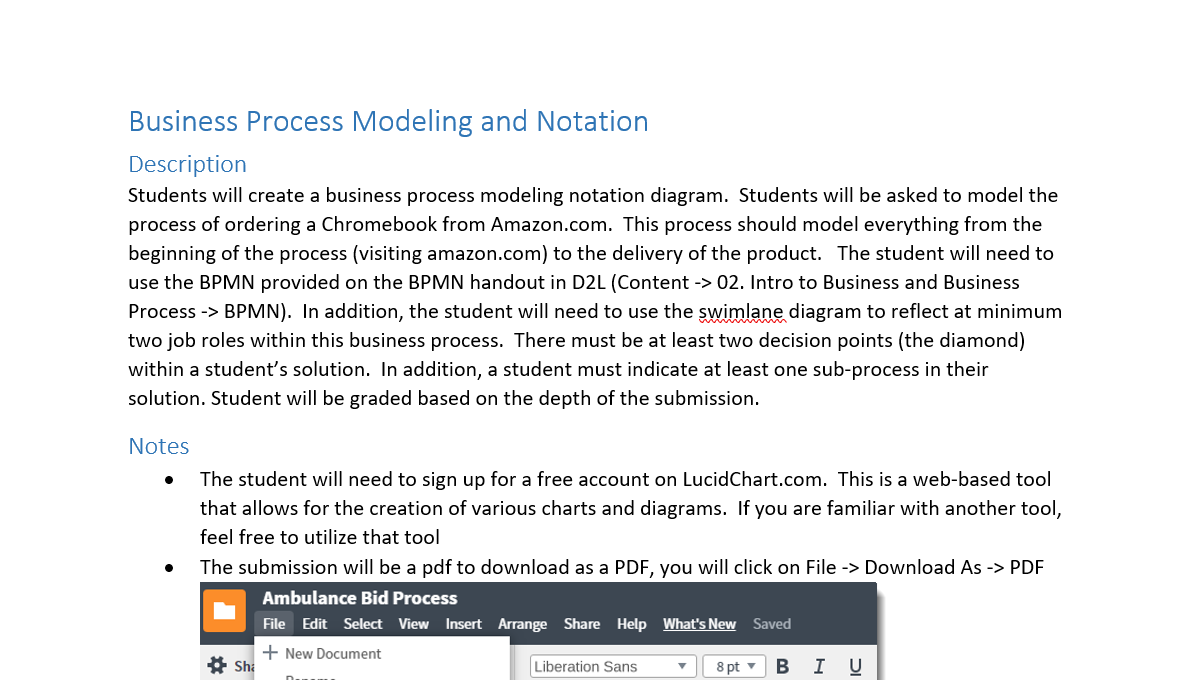

The first picture showing Business Process Modeling and Notation is the assignment.

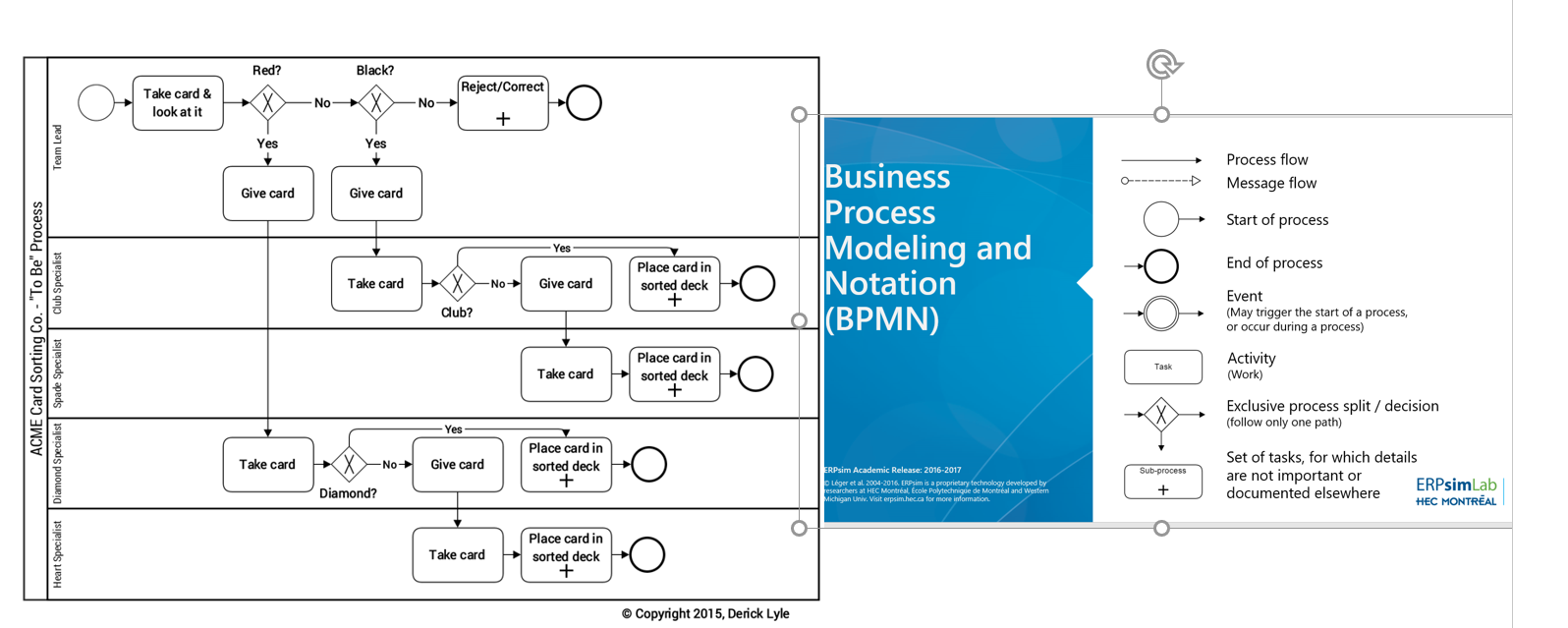

The second picture is an example of the assignment expectation.

Business Process Modeling and Notation Description Students will create a business process modeling notation diagram. Students will be asked to model the process of ordering a Chromebook from Amazon.com. This process should model everything from the beginning of the process (visiting amazon.com) to the delivery of the product. The student will need to use the BPMN provided on the BPMN handout in D2L (Content -> 02. Intro to Business and Business Process -> BPMN). In addition, the student will need to use the swimlane diagram to reflect at minimum two job roles within this business process. There must be at least two decision points (the diamond) within a student's solution. In addition, a student must indicate at least one sub-process in their solution. Student will be graded based on the depth of the submission. Notes The student will need to sign up for a free account on LucidChart.com. This is a web-based tool that allows for the creation of various charts and diagrams. If you are familiar with another tool, feel free to utilize that tool The submission will be a pdf to download as a PDF, you will click on File -> Download As -> PDF Ambulance Bid Process File Edit Select View Insert Arrange Share Help What's New Saved + New Document $ Sh Liberation Sans 8 pt B I U Red? Black? Reject/Correct Take card & look at it No No + Team Lead Yes Yes Process flow Message flow Give card Give card Start of process Yes Business Process Modeling and INotation (BPMN) End of process Take card Place card in sorted deck -No Give card + Club? Event (May trigger the start of a process, or occur during a process) Club Specialist ACME Card Sorting Co. - "To Be Process Diamond Specialist Spade Specialist 01-4000011 Task Place card in sorted deck + Take card Activity (Work) fo Exclusive process split / decision (follow only one path) Yes Take card -No Give card Place card in sorted deck + O Sub-process Set of tasks, for which details are not important or documented elsewhere ERPsimLab HEC MONTREAL ERPsim Academic Release: 2016-2017 Lger et al. 2004-2016. ERPsim is a proprietary technology developed by researchers at HEC Montral, cole Polytechnique de Montral and Western Michigan Univ. Visiterpsim.hec.ca for more information Diamond? Heart Specialist Take card Place card in sorted deck + Copyright 2015, Derick Lyle
