Question: The fram shown has a roller support at A and a pin at D . It carries a uniform load of 1 0 kip /

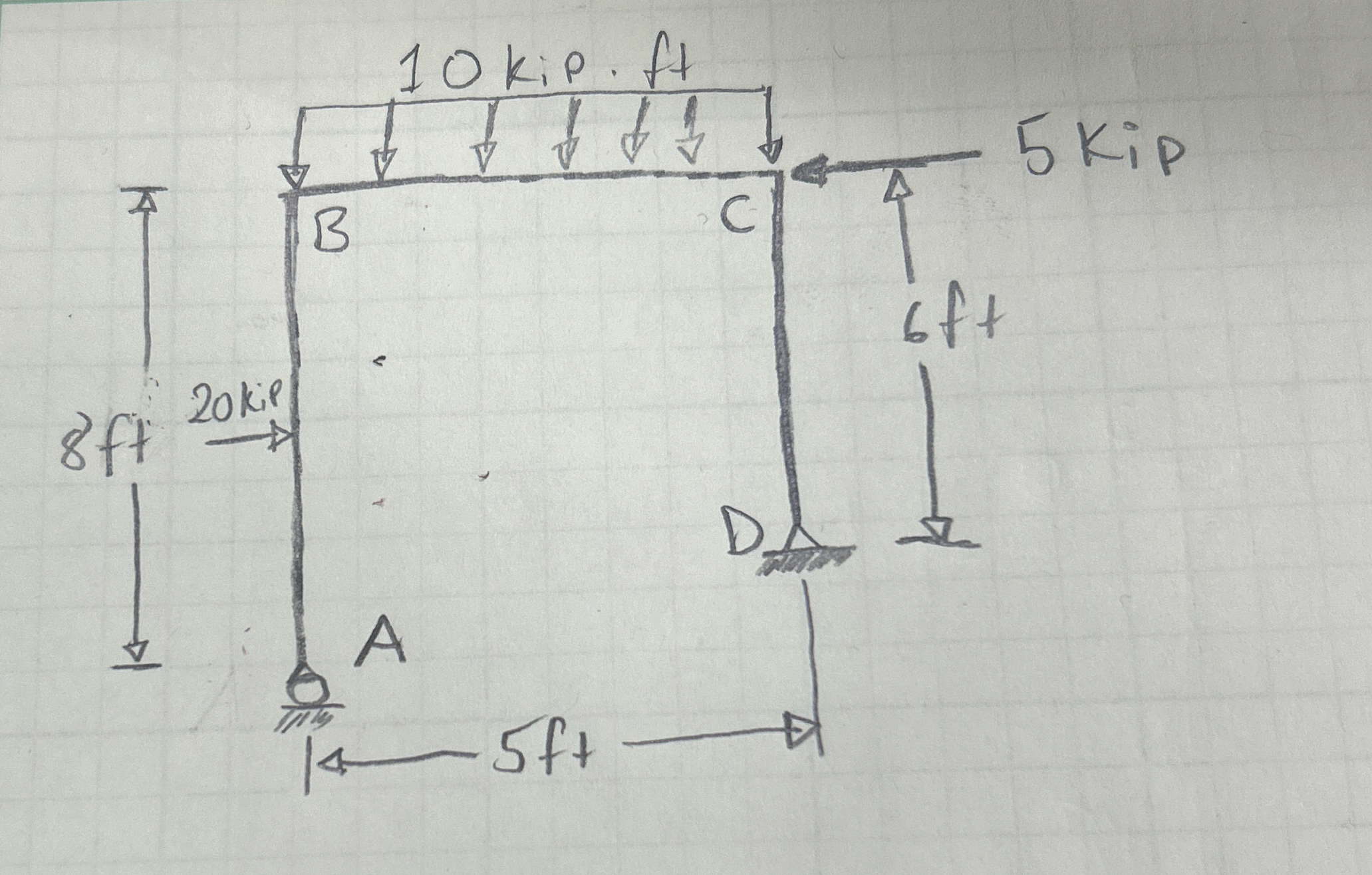

The fram shown has a roller support at A and a pin at D.It carries a uniform load of 10 kip/ft along member BC. Assume constant value of EI. E=200000 MPa I=136x10^6 mm^4. Using virtual work Method, (1) compute the vertical reaction at A.(2) comeputr the horizontal and vertical reaction at D.(3) comput the horzontal deflection at joint C. Show all work and draw all the necesary diagrams.
The fram shown has a roller support at A and a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
