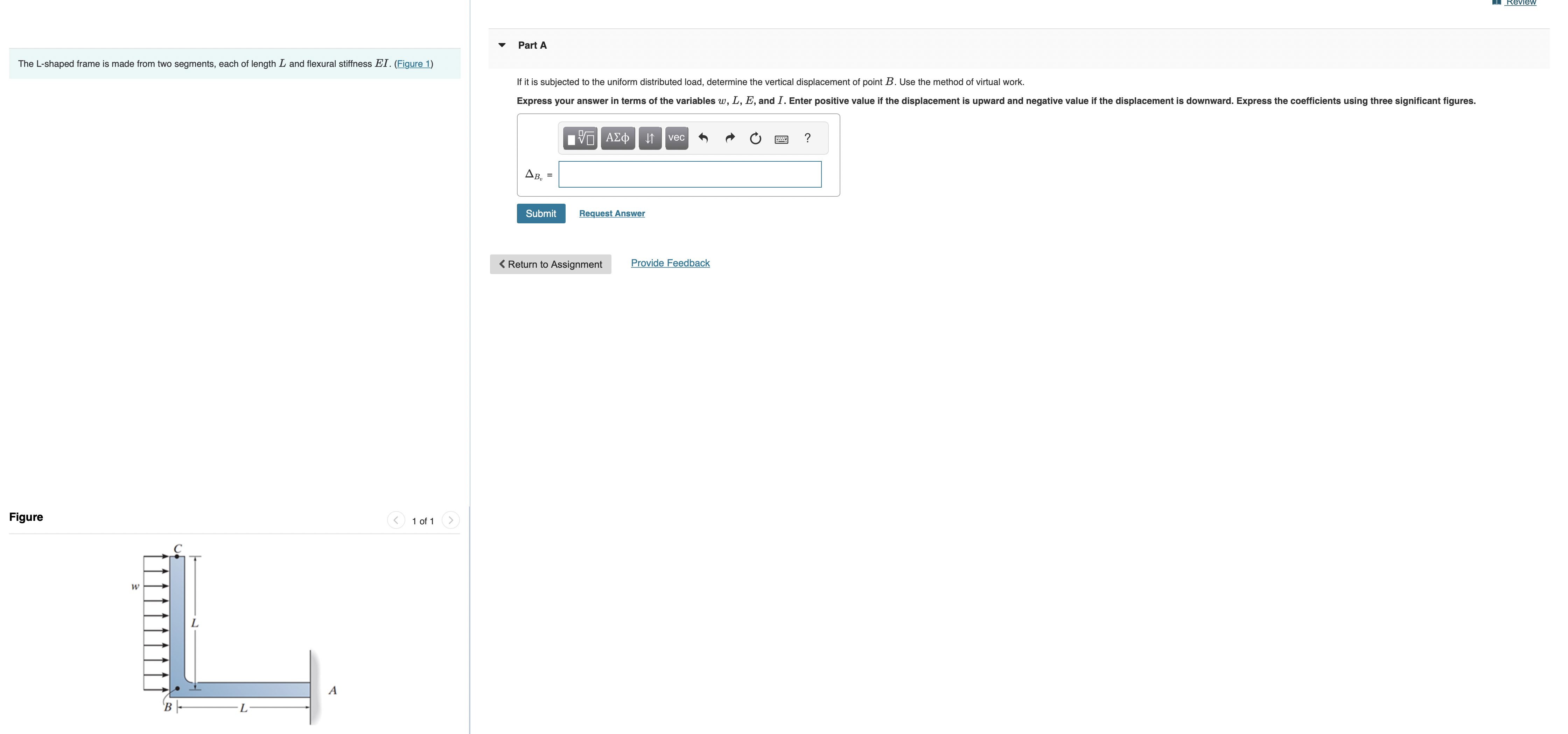

Question: The L - shaped frame is made from two segments, each of length L and flexural stiffness E I . ( Figure 1 ) q

The L-shaped frame is made from two segments, each of length L and flexural stiffness EI.(Figure 1)q,
q,
Part A
If it is subjected to the uniform distributed load, determine the vertical displacement of point B. Use the method of virtual work.
Request Answer
Provide Feedback
The L - shaped frame is made from two segments,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

The L-shaped frame is made from two segments, each of length \(L\) and flexural stiffness \(E I\). Determine the vertical displacement of point \(B\). W C L A B -L-

Q:

The L-shaped frame is made from two segments, each of length \(L\) and flexural stiffness \(E I\). Determine the horizontal displacement of point \(C\). W C L A B- -L-

Q:

The L - shaped frame is made from two segments, each of length L and flexural stiffness E I . ( Figure 1 ) Figure 1 of 1 Part A If it is subjected to the uniform distributed load, determine the...

Q:

The L - shaped frame is made from two segments, each of length \ ( L \ ) and flexural stiffness \ ( E I \ ) . I it is subjected to the uniform distributed load as shown in the figure, find: a . The...

Q:

Problem 4 : 2 0 points The L - shaped frame is made from two segments, each of length L and flexural stiffness EI . If it is subjected to the uniform distributed load, determine the horizontal...

Q:

The L - shaped frame is made from two segments, each of length L and flexural rigidity El . If the frame is subjected to a uniform distributed load ( as shown below ) , determine the vertical...

Q:

The L-shaped frame is made from two segments, each of length Land flexural stiffness EI. If it is subjected to the uniform distributed load, determine the vertical displacement of point B. Using...

Q:

The L-shaped frame is made from two segments, each of length Land flexural stiffness EI. If it is subjected to the uniform distributed load, determine the horizontal displacement of the end C. Use...

Q:

The L-shaped frame is made from two segments, each of length Land flexural stiffness EI. If it is subjected to the uniform distributed load, determine the vertical displacement of point B. Use the...

Q:
