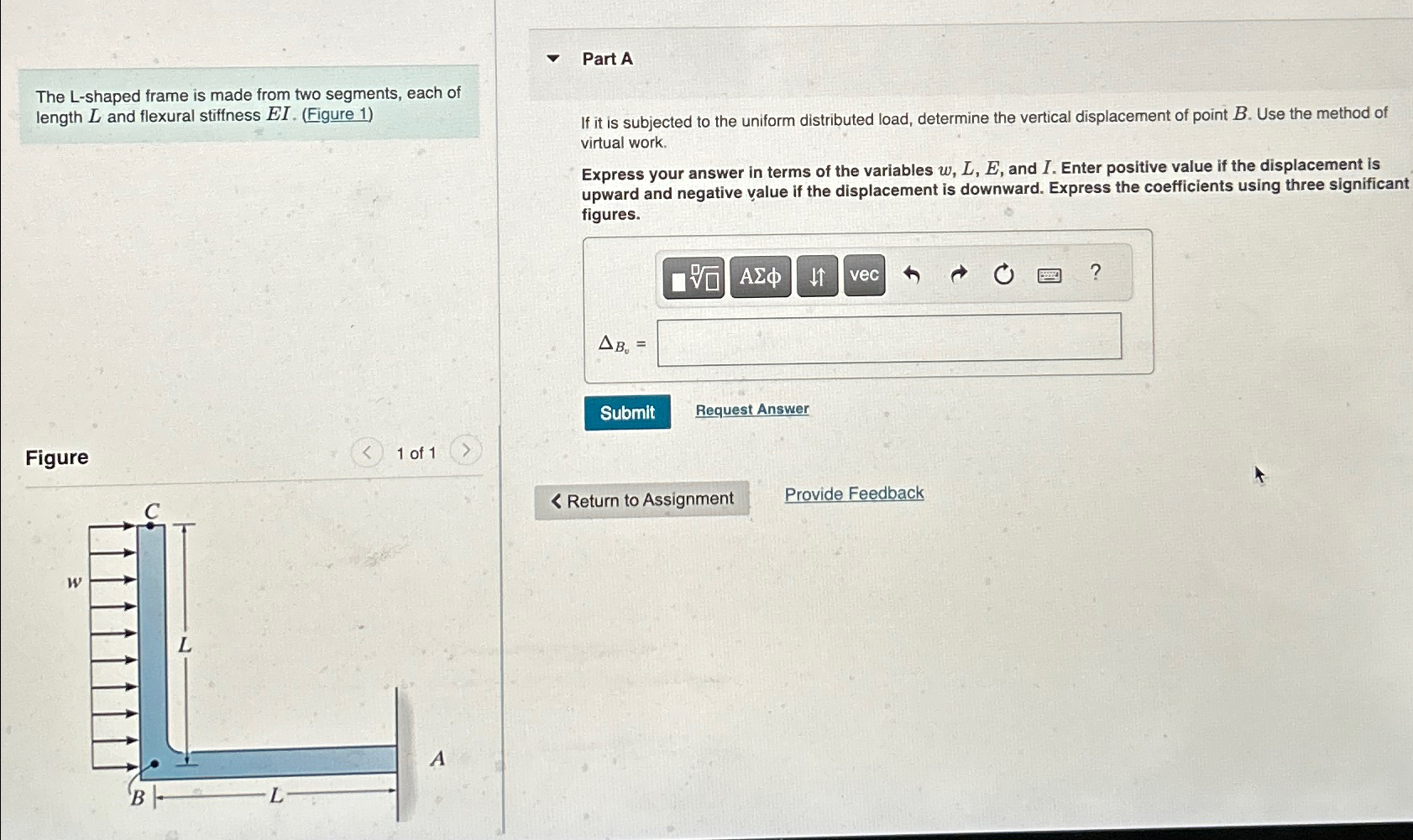

The L$-$shaped frame is made from two segments, each of length $L$ and flexural stiffness $EI.($Figure $1)$

Figure

$1$ of $1$

Part A

If it is subjected to the uniform distributed load, determine the vertical displacement of point $B.$ Use the method of virtual work.

Express your answer in terms of the variables $w,L,E,$ and I. Enter positive value if the displacement is upward and negative value if the displacement is downward. Express the coefficients using three significant figures.

${}_{B_v}=$
