Question: The light right - angle boom which supports the ( 5 6 0 - mathrm { kg } ) cylinder is supported

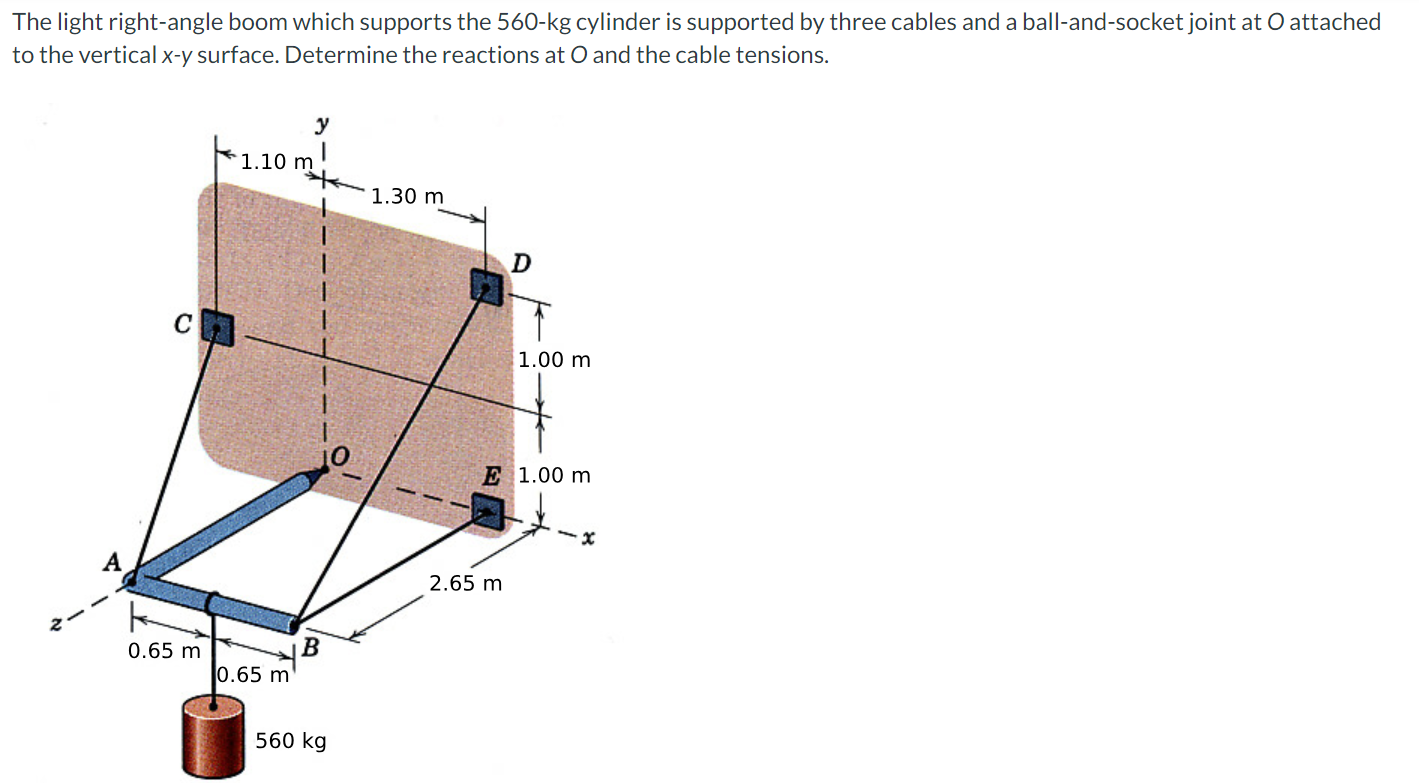

The light right-angle boom which supports the \(560-\mathrm{kg}\) cylinder is supported by three cables and a ball-and-socket joint at \( O \) attached to the vertical \( x-y \) surface. Determine the reactions at \( O \) and the cable tensions.
The light right - angle boom which supports the \

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
