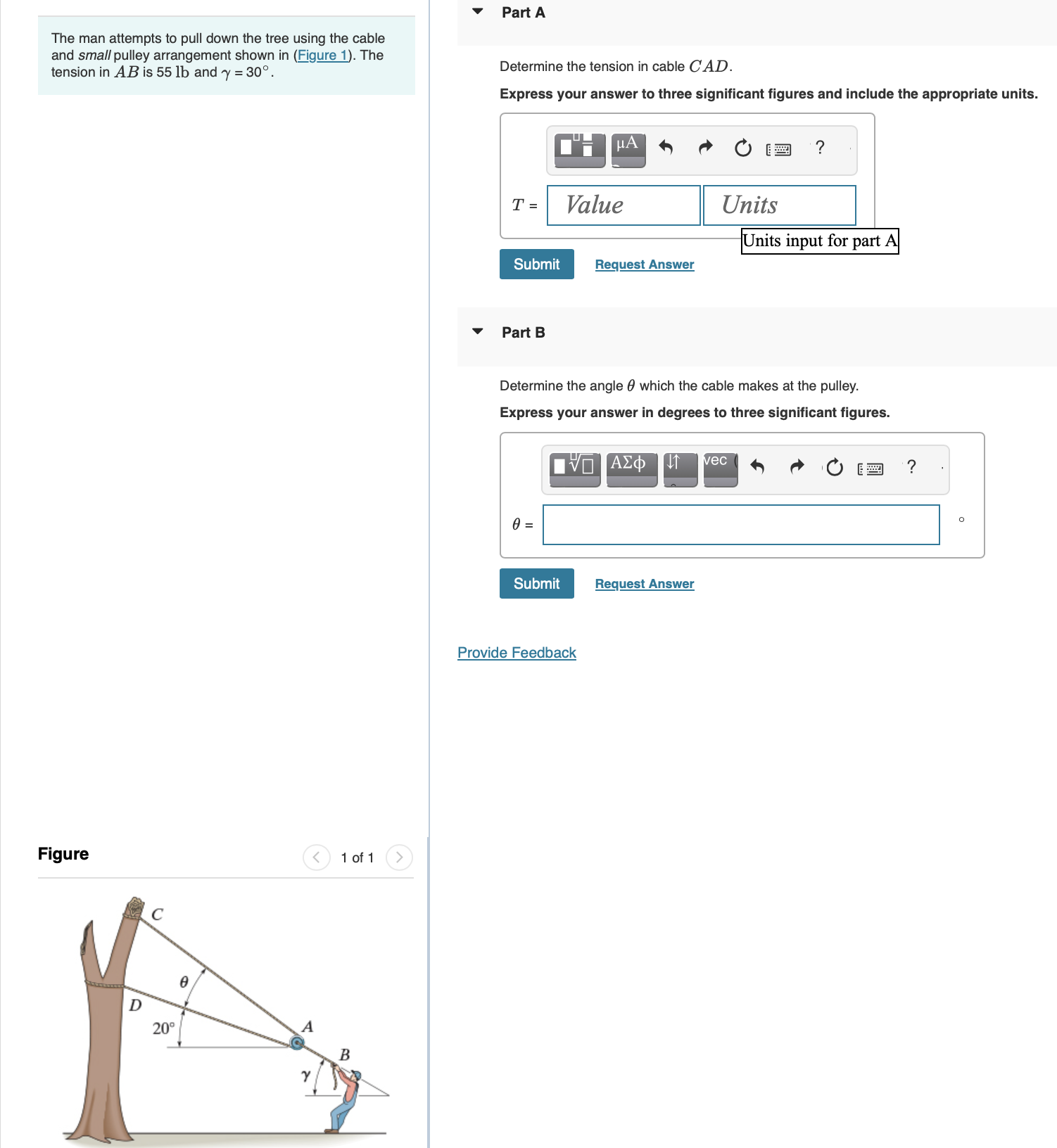

Question: The man attempts to pull down the tree using the cable and small pulley arrangement shown in ( Figure 1 ) . The tension in

The man attempts to pull down the tree using the cable
and small pulley arrangement shown in (Figure 1). The
tension in AB is 55 lb and =30.
Part A
Determine the tension in cable CAD.
Express your answer to three significant figures and include the appropriate units.
T=
Units
Units input for part A
Part B
Determine the angle which the cable makes at the pulley.
Express your answer in degrees to three significant figures.
=
Provide Feedback
