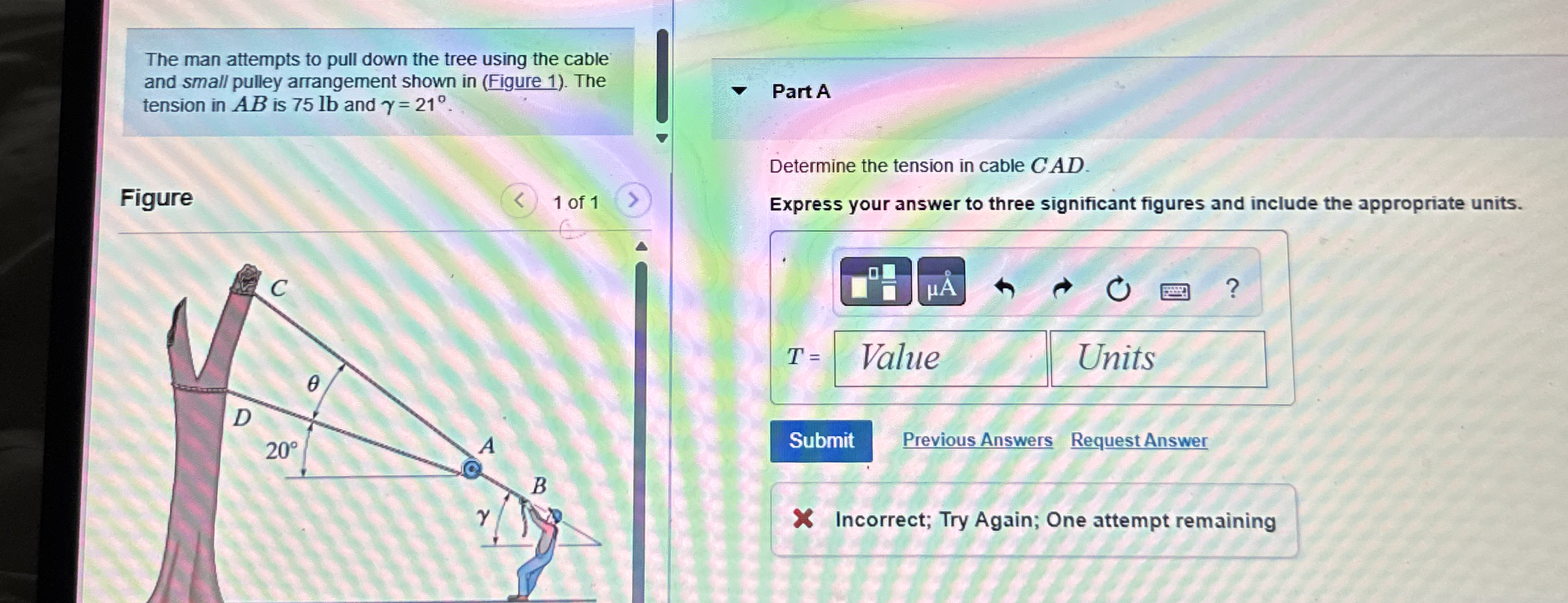

Question: The man attempts to pull down the tree using the cable and small pulley arrangement shown in ( Figure 1 ) . The tension in

The man attempts to pull down the tree using the cable
and small pulley arrangement shown in (Figure 1). The
tension in AB is 75 lb and =21.
Figure
Part A
Determine the tension in cable CAD.
Express your answer to three significant figures and include the appropriate units.
T=
The man attempts to pull down the tree using the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

The man attempts to pull down the tree using the cable and small pulley arrangement shown in ( Figure 1 ) . The tension in AB is 8 0 lb and \ gamma = 3 9 . The man attempts to pull down the tree...

Q:

User Settings urchase Options The man attempts to pull down the tree using the cable and small pulley arrangement shown in ( Figure 1 ) . The tension in A B is 8 0 lb and = 2 4 . Part A Determine the...

Q:

The man attempts to pull down the tree using the cable and small pulley arrangement shown in ( Figure 1 ) . The tension in A B is 6 0 lb and = 2 4 . Figure Part A Determine the tension in cable CAD....

Q:

The man attempts to pull down the tree using the cable and small pulley arrangement shown in ( Figure 1 ) . The tension in A B is 4 0 l b and = 3 9 . Figure 1 of 1 Part A Determine the tension in...

Q:

The man attempts to pull down the tree using the cable and small pulley arrangement shown in ( Figure 1 ) . The tension in A B is 5 5 lb and = 3 0 . Part A Determine the tension in cable CAD. Express...

Q:

Homework 02 3-7. The man attempts to pull down the tree using the cable and small pulley arrangement shown. If the tension in AB is 60 lb, determine the tension in cable CAD and the angle which the...

Q:

Part A The man attempts to pull down the tree using the cable and small pulley arrangement shown in ( Figure 1 ) . The tension in A B is 8 0 lb and = 2 1 . Part B Figure Determine the angle which the...

Q:

The man attempts to pull down the tree using the cable and small pulley arrangement shown. If the tension in AB is 60 lb, determine the tension in cable CAD and the angle which the cable makes at...

Q:

The man attempts to pull down the tree using the cable and small pulley arrangement shown. If the tension in \ ( A B \ ) is 6 0 lb , determine the tension in cable \ ( C A D \ ) and the angle \ ( \...

Q:

The man attempts to pull down the tree using the cable and small pulley arrangement shown. If the tension in AB is 60 lb determine the tension in cable CAD and the angle that the cable makes at the...
