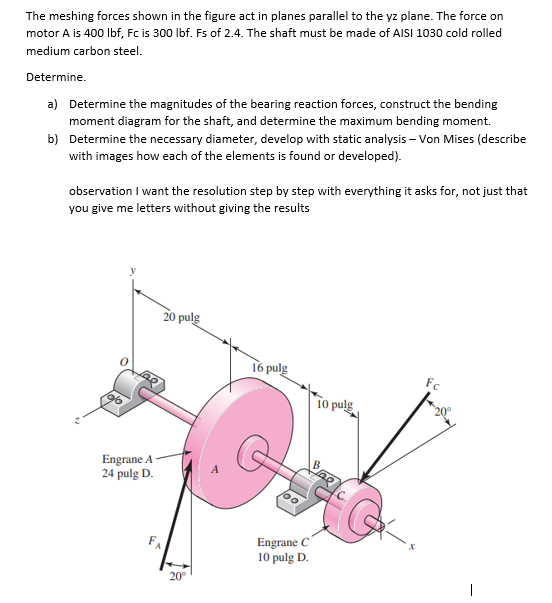

The meshing forces shown in the figure act in planes parallel to the yz plane. The force on

motor A is $400lbf,Fc$ is $300lbf.$ Fs of $2\mathrm{.}4.$ The shaft must be made of AISI $1030$ cold rolled

medium carbon steel.

Determine.

a$)$ Determine the magnitudes of the bearing reaction forces, construct the bending

moment diagram for the shaft, and determine the maximum bending moment.

b$)$ Determine the necessary diameter, develop with static analysis $-$ Von Mises $($describe

with images how each of the elements is found or developed$).$

observation I want the resolution step by step with everything it asks for, not just that

you give me letters without giving the results
