Question: The network for a project is shown below. Activity times, in days are indicated by the figure that appears under each activity 7 8 5

The network for a project is shown below.

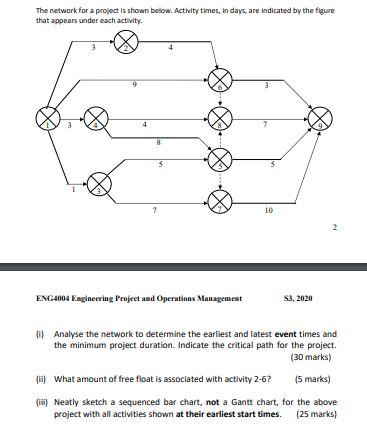

The network for a project is shown below. Activity times, in days are indicated by the figure that appears under each activity 7 8 5 7 10 ENG4004 Engineering Project and Operations Management S3, 2020 (i) Analyse the network to determine the earliest and latest event times and the minimum project duration. Indicate the critical path for the project. (30 marks) (ii) What amount of free float is associated with activity 2-6? 15 marks) fiti) Neatly sketch a sequenced bar chart, not a Gantt chart, for the above project with all activities shown at their earliest start times. (25 marks)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

A network for a project is shown below. Activity times, in days, are indicated by the figure that appears under the activity. 3 2 2 (i) Analyze the network and determine the earliest and latest EVENT...

solve please to compare against own answers. The network for a project is shown below. Activity times, in days, are indicated by the figure that appears under each activity. (i) Analyse the network...

Please show full crash cost evaluation :) Thankyou A network for a project is shown below. Activity times, in days, are indicated by the figure that appears under each activity. 2 3 5 6 1 3 3 2 4 3...

(iv) Indicate the number of people required on each day of the project with all activities at their earliest start times. (5 marks) Activity 1-2 1-3 1-4 1-6 2-6 3-5 3-7 4-5 4-8 5-9 6-9 7-9 8-9 People...

The network for a project is shown below. Activity times, in days, are indicated by the figure that appears under each activity. 3 4 9 6 3 3 4 8 7 9 8 5 S 1 3 7 10 2 ENG4004 Engineering Project and...

The network for a project is shown below. Activity times, in days, are indicated by the figure that appears under each activity. 4 9 3 0 3 4 7 8 5 7 10 2 ENG4004 Engineering Project and Operations...

A network for a project is shown below. Activity times, in days, are indicated by the figure that appears under the activity. (i) Analysis the network, determine the critical path and calculate the...

A network for a project is shown below. Activity times in days are indicated by the figure that appears under the activity. 9 Pipe 0:4 Analysis the network, determine the critical path and calculate...

The network for a project is shown below. Activity times, in days, are indicated by the figure that appears under each activity. 1.Analyse the network to determine the earliest and latest event times...

PART B: The Activity on Arrow network for a project is shown below. Activity times in days, are indicated by the figure that appears under each activity. 3 9 3 3 4 7 5 7 10 PARTC For the project in...
