Question: The object suspended at E as shown in ( Figure 1 ) weighs 3 0 0 lb . Part A Determine the reactions on member

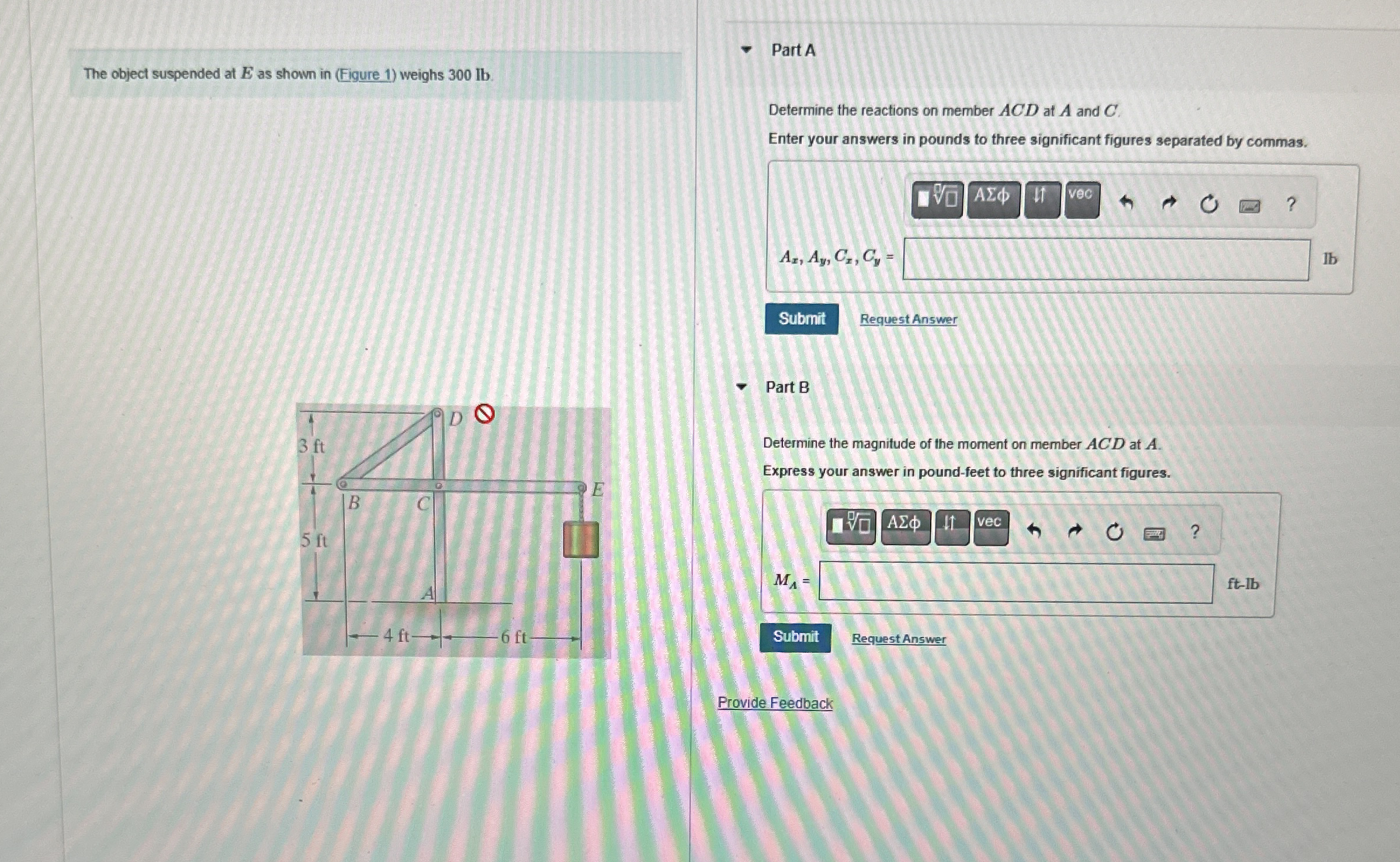

The object suspended at E as shown in (Figure 1) weighs 300 lb .
Part A
Determine the reactions on member ACD at A and C.
Enter your answers in pounds to three significant figures separated by commas.
Ax,Ay,Cx,Cy=
lb
Request Answer
Part B
Determine the magnitude of the moment on member ACD at A.
Express your answer in pound-feet to three significant figures.
MA=
Request Answer
Provide Feedback
The object suspended at E as shown in ( Figure 1

Step by Step Solution

There are 3 Steps involved in it
