The picture is the example the problem is talking about

3. Convert the decimal value 3542 to binary coded decimal, using Table 7.4. Provide your answer in a table exactly like Example 7.4:

Number Sequence Binary Number Decimal Value --------------------------------------------------------------------------------------------------------------------- First _________ ________

Second _________ ___________

Third _________ ____________

Fourth _________ _____________

Sum ________

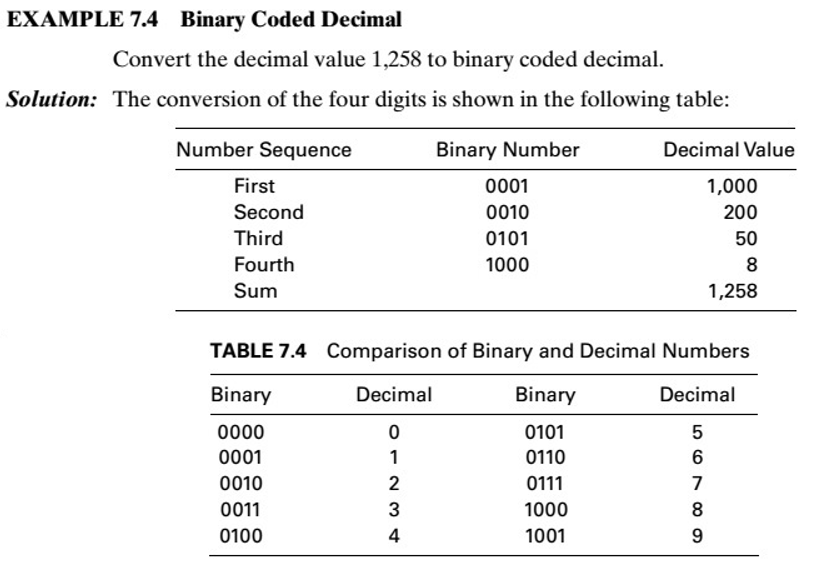

EXAMPLE 7.4 Binary Coded Decimal Convert the decimal value 1,258 to binary coded decimal. Solution: The conversion of the four digits is shown in the following table: TABLE 7.4 Comparison of Binary and Decimal Numbers
