Question: The plate ( th - 1 5 m m , S y = 4 6 0 MPa, S u - 5 5 0 MPa )

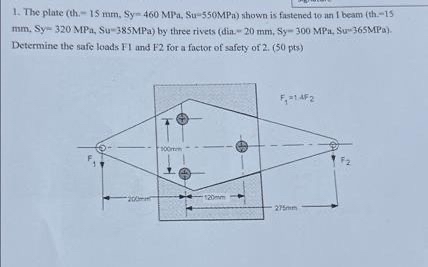

The plate (th -15mm,Sy=460MPa,Su-550MPa ) shown is fastened to an I beam (th -15mm,Sy=320MPa,Su=385MPa by three rivets (dia--20mm,Sy-300MPa,Su=365MPa ). Determine the safe loads F 1 and F2 for a factor of safety of 2.(50 pts )
The plate ( th - 1 5 m m , S y = 4 6 0 MPa, S u -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
