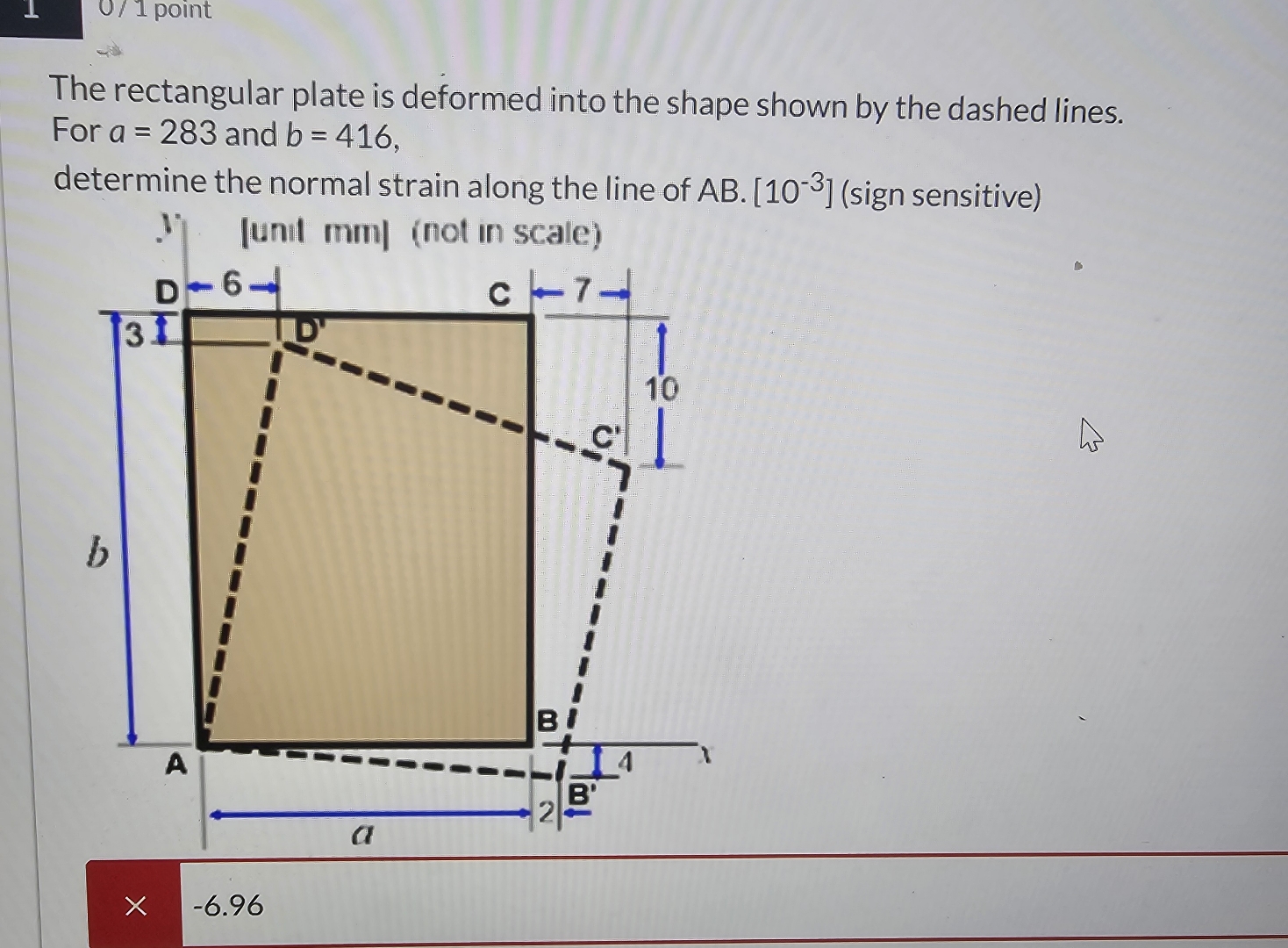

Question: The rectangular plate is deformed into the shape shown by the dashed lines. For a = 2 8 3 and b = 4 1 6

The rectangular plate is deformed into the shape shown by the dashed lines. For a=283 and b=416,
determine the normal strain along the line of AB.[10-3](sign sensitive)
-6.96
The rectangular plate is deformed into the shape

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a = 3 3 0 mm and b = 4 4 0 m m . ( Figure 1 ) Determine the average normal strain along diagonal BD . Express...
