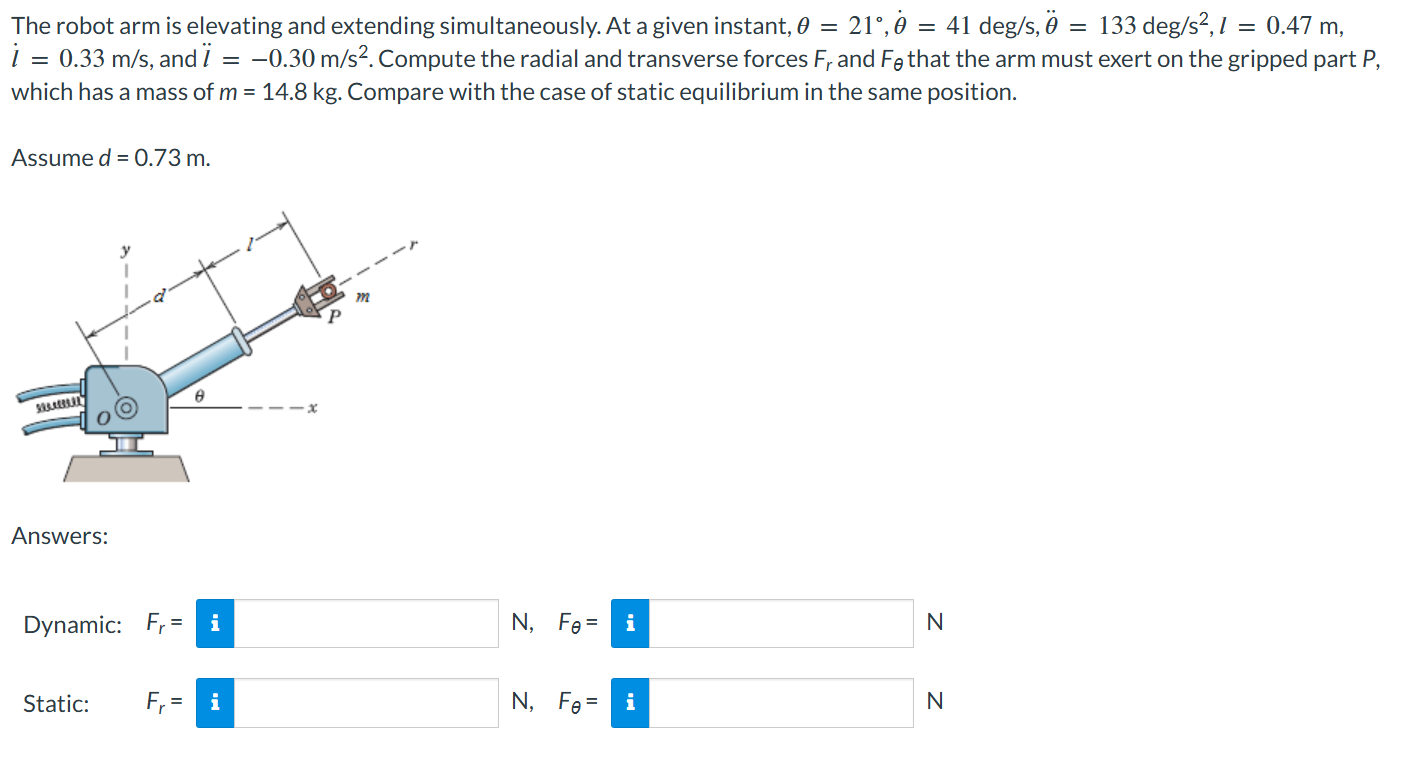

The robot arm is elevating and extending simultaneously. At a given instant, $=21,{}^{}=41de\frac{g}{s},{}^{}=133de\frac{g}{s^2},l=0\mathrm{.}47m$

$l^{}=0\mathrm{.}33\frac{m}{s},$ and $l^{}=-0\mathrm{.}30\frac{m}{s^2}.$ Compute the radial and transverse forces $F_r$ and $F_{}$ that the arm must exert on the gripped part $P,$

which has a mass of $m=14\mathrm{.}8kg.$ Compare with the case of static equilibrium in the same position.

Assume $d=0\mathrm{.}73m$

Answers:

Dynamic: $,F_r=$

$N,F_{}=$

N

Static:

$F_r=$

i

$N,F_{}=$

N
