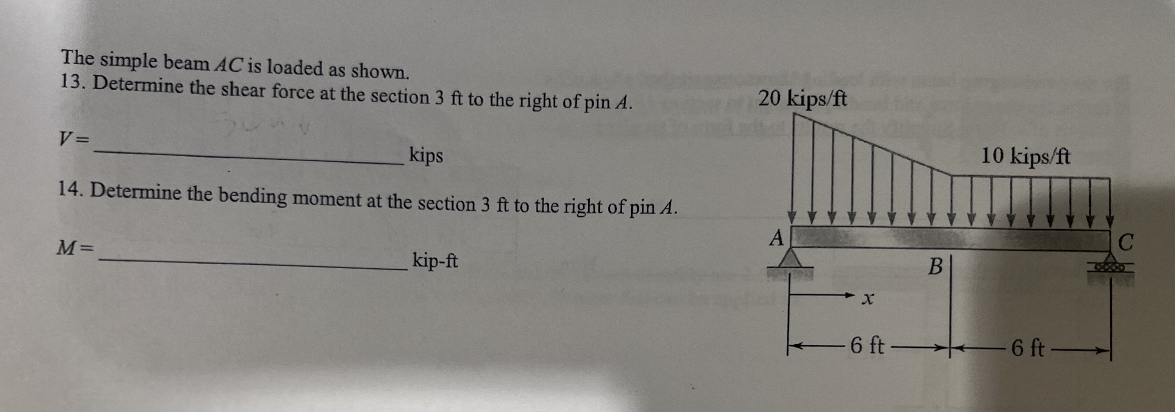

Question: The simple beam A C is loaded as shown. 1 3 . Determine the shear force at the section 3 ft to the right of

The simple beam AC is loaded as shown.
13. Determine the shear force at the section 3 ft to the right of pin A.
V= kips
14. Determine the bending moment at the section 3 ft to the right of pin A.
M=
The simple beam A C is loaded as shown. 1 3 .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
