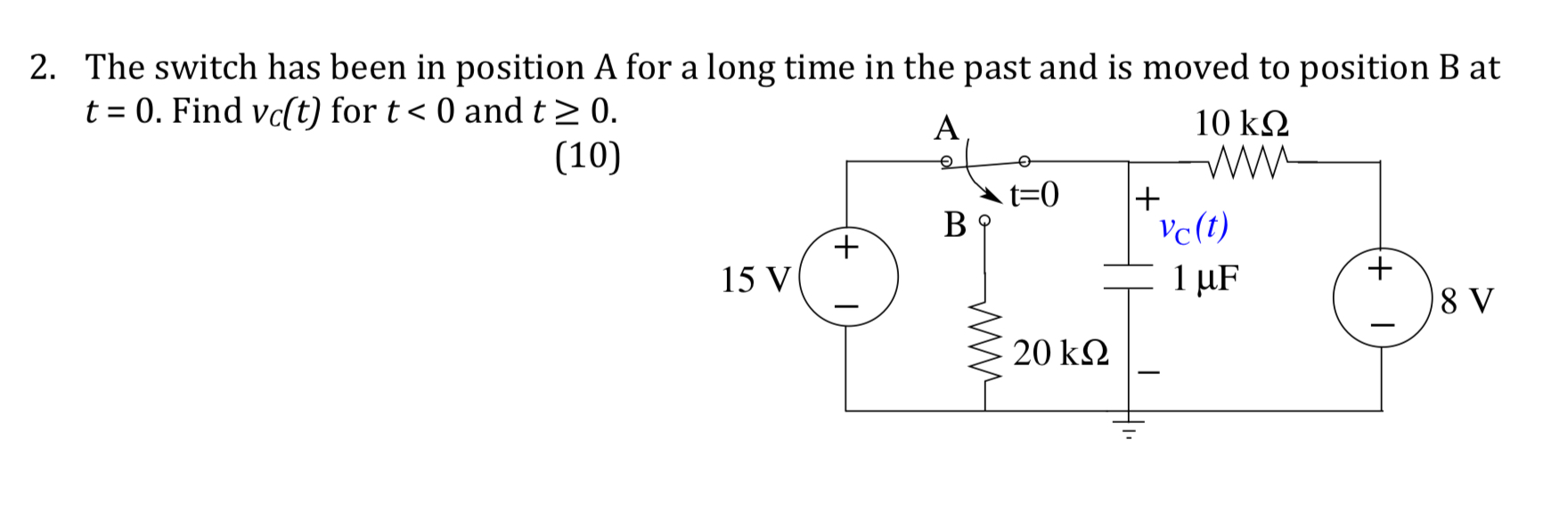

Question: The switch has been in position A for a long time in the past and is moved to position B at t = 0 .

The switch has been in position A for a long time in the past and is moved to position B at
t=0. Find v_(c)(t) for t0 and t>=0.
(10)
The switch has been in position A for a long time

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
