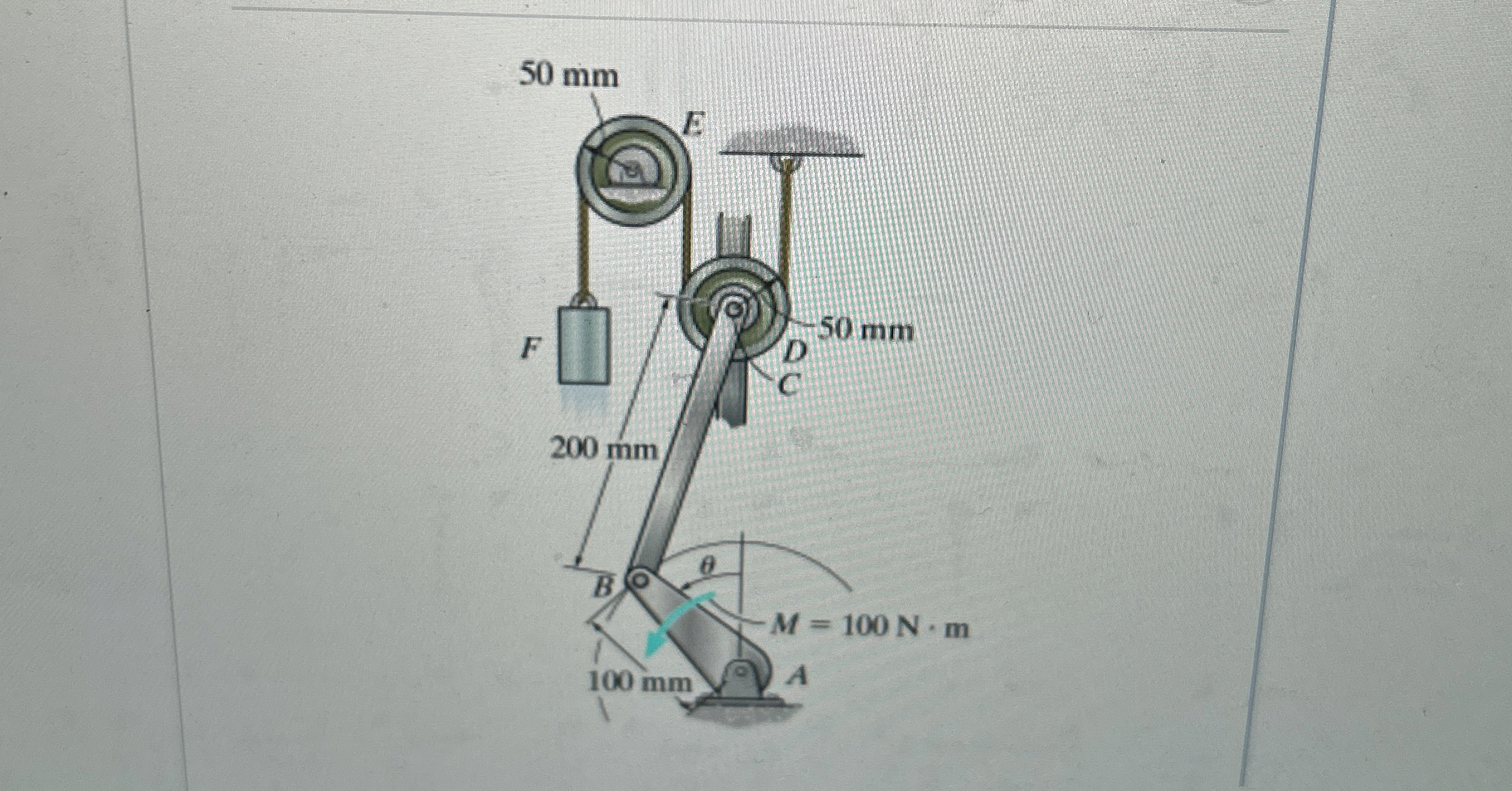

The system is released from rest at =0 when a constant couple moment M=100N*m is applied. (Figure 1)
Part A
If the mass of the cable and links AB and BC can be neglected, and each pulley can be treated as a disk having a mass of 6 kg , determine the speed of the 22-kg block at the instant link AB has rotated =90. Note that point C moves along the vertical guide. Also, the cable does not slip on the pulleys.
Express your answer to three significant figures and include the appropriate units.
vF=
Request Answer
The system is released from rest at = 0 when a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
