Question: The T - beam cross - section shown has an effective depth of 2 6 . 4 6 in . , a distance from the

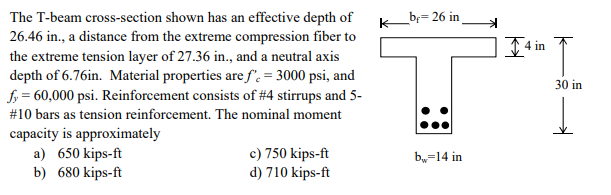

The T-beam cross-section shown has an effective depth of
26.46 in., a distance from the extreme compression fiber to
the extreme tension layer of 27.36 in., and a neutral axis
depth of 6.76 in . Material properties are fc'=3000, and
fy=60,000 psi. Reinforcement consists of #4 stirrups and 5-
#10 bars as tension reinforcement. The nominal moment
capacity is approximately
a)650kips-ft
c)750kips-ft
b)680 kips-ft
d)710kips-ft
bw=14 in
step by step please! will rate!
