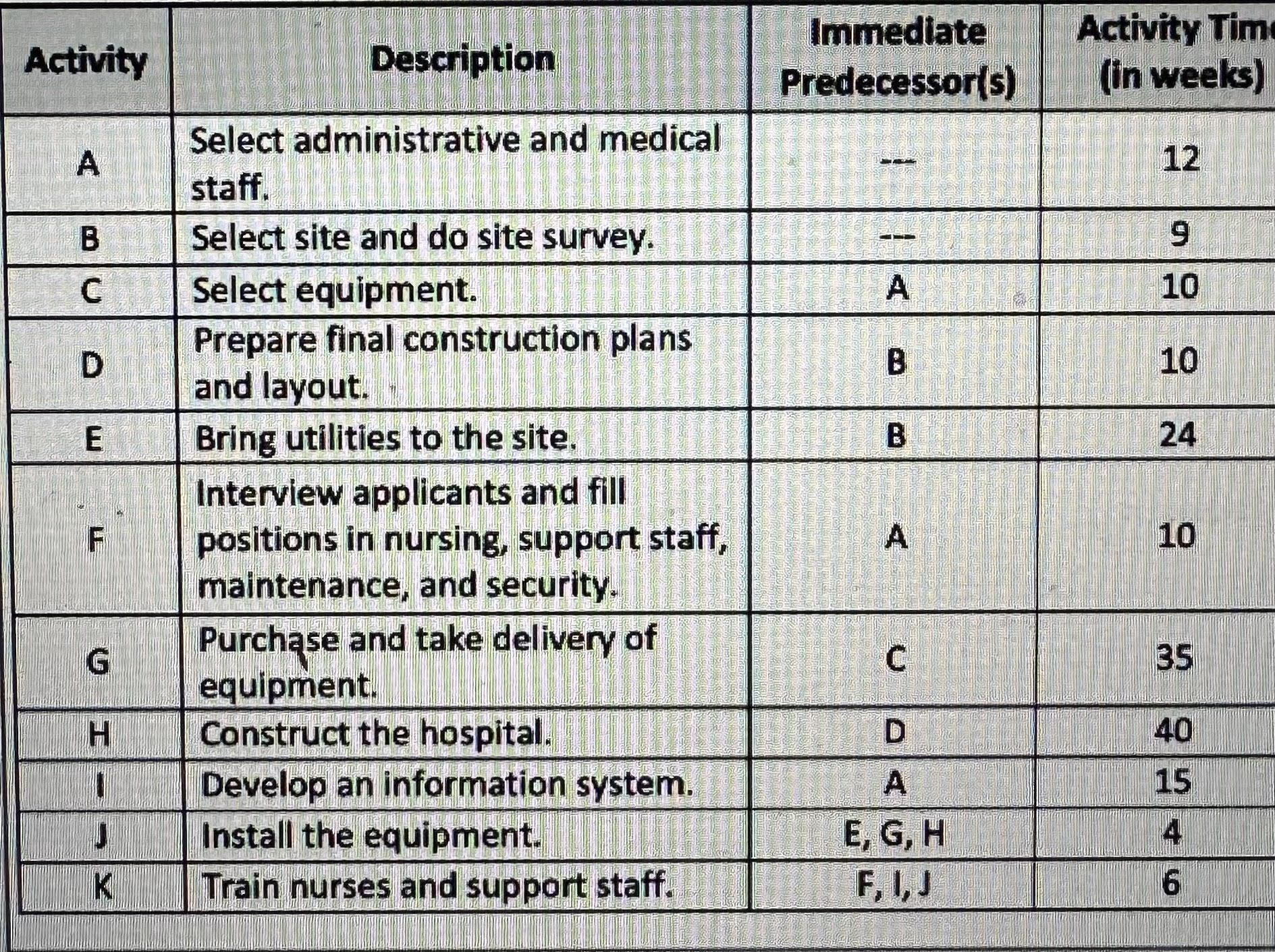

The table below details the steps required to build and begin services at a new hospital. Use the information in the table below to:

1. Develop a process flow chart
2. Use the critical path method to determine the process flow time
3. Answer the questions

\begin{tabular}{|c|l|c|c|} \hline Activity & \multicolumn{1}{|c|}{ Description } & ImmediatePredecessor(s) & ActivityTim(inweeks) \\ \hline A & Selectadministrativeandmedicalstaff. & - & 12 \\ \hline B & Select site and do site survey. & - & 9 \\ \hline C & Select equipment. & A & 10 \\ \hline D & Preparefinalconstructionplansandlayout. & B & 10 \\ \hline E & Bring utilities to the site. & B & 24 \\ \hline F & Interviewapplicantsandfillpositionsinnursing,supportstaff,maintenance,andsecurity. & A & 10 \\ \hline G & Purchseandtakedeliveryofequipment. & C & 35 \\ \hline H & Construct the hospital. & D & 40 \\ \hline I & Develop an information system. & A & 15 \\ \hline J & Install the equipment. & E, G, H & 4 \\ \hline K & Train nurses and support staff. & F, l, J & 6 \\ \hline \end{tabular} What is the earliest start time (EST) of Activity C? Question 2 What is the earliest finish time (EFT) of Activity G? Question 3 What is the latest finish time (LFT) of Activity D? Question 4 What is the slack for Activity F? Question 5 What is the flow time of the process
