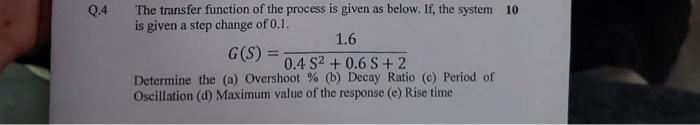

Question: The transfer function of the process is given as below. If, the system 10 is given a step change of 0.1. 1.6 G (S) =

The transfer function of the process is given as below. If, the system 10 is given a step change of 0.1.

1.6

G (S) =

0.4 S2 + 0.6 S + 2

Determine the (a) Overshoot % (b) Decay Ratio (c) Period of

Oscillation (d) Maximum value of the response (e) Rise time

2.4 The transfer function of the process is given as below. If, the system 10 is given a step change of 0.1 . G(S)=0.4S2+0.6S+21.6 Determine the (a) Overshoot \% (b) Decay Ratio (c) Period of Oscillation (d) Maximum value of the response (e) Rise time

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
