This circuit operates with complemented outputs and a complement enable input. The

decoder is enabled when $E$ is equal to $0.$ As indicated in the table, one output can be $0$ at

any time.

a$)$ Write an entity declaration for this decoder.

b$)$ Write architecture body named decoder$\_$select for this decoder using selected

signal assignment statement.

c$)$ Write architecture body named decoder$\_$case for this decoder using case

statement.

d$)$ Using one instance of decoder$\_$select and one instance of decoder$\_$case design a

three$-$to$-$eight. Draw a block diagram for this circuit.

e$)$ Write a structural VHLD $($both entity declaration and architecture body$)$ for the

three$-$to$-$eight decoder.

Note: The outputs of three$-$to$-$eight decoder are complemented as well. You do not

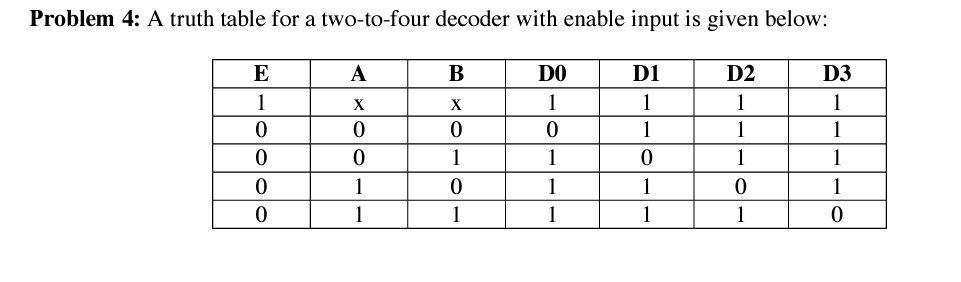

need to implement enable signal on three$-$to$-$eight decoder.Problem $4$: A truth table for a two$-$to$-$four decoder with enable input is given below:

This circuit operates with complemented outputs and a complement enable input. The decoder is enabled when E is equal to $0.$ As indicated in the table, one output can be $0$ at any time. a$)$ Write an entity declaration for this decoder. b$)$ Write architecture body named decoder$\_$select for this decoder using selected signal assignment statement. c$)$ Write architecture body named decoder$\_$case for this decoder using case statement. d$)$ Using one instance of decoder$\_$select and one instance of decoder$\_$case design a three$-$to$-$eight. Draw a block diagram for this circuit. e$)$ Write a structural VHLD $($both entity declaration and architecture body$)$ for the three$-$to$-$eight decoder. Note: The outputs of three$-$to$-$eight decoder are complemented as well. You do not need to implement enable signal on three$-$to$-$eight decoder.
