Question: This circuit using D flip-flop is made to measure forward rotate velocity and reverse rotate velocity 1) CW truth table 2) CCW truth table 3)

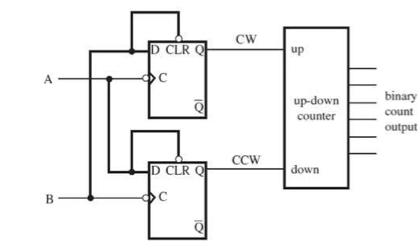

This circuit using D flip-flop is made to measure forward rotate velocity and reverse rotate velocity

A B D CLR Q >C D CLR Q c CW CCW

1) CW truth table

2) CCW truth table

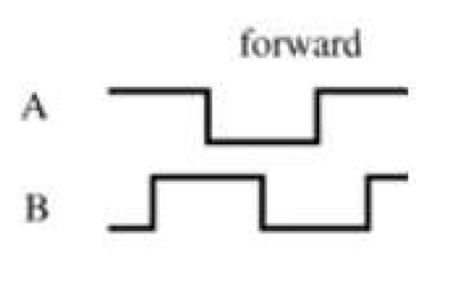

3) CW, CWW timing table of forward rotate

up up-down counter down binary count output

4) CW, CWW timing table of reverse rotate


A B D CLR Q >C D CLR Q c CW CCW up up-down counter down binary count output

Step by Step Solution

★★★★★

3.45 Rating (155 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
