Question: This is mechanics problem. 13.2 Knowing that the I-section beam shown is made of steel for which the allowable stress allow=150MPa, determine the largest couple

This is mechanics problem. 13.2 Knowing that the I-section beam shown

This is mechanics problem.

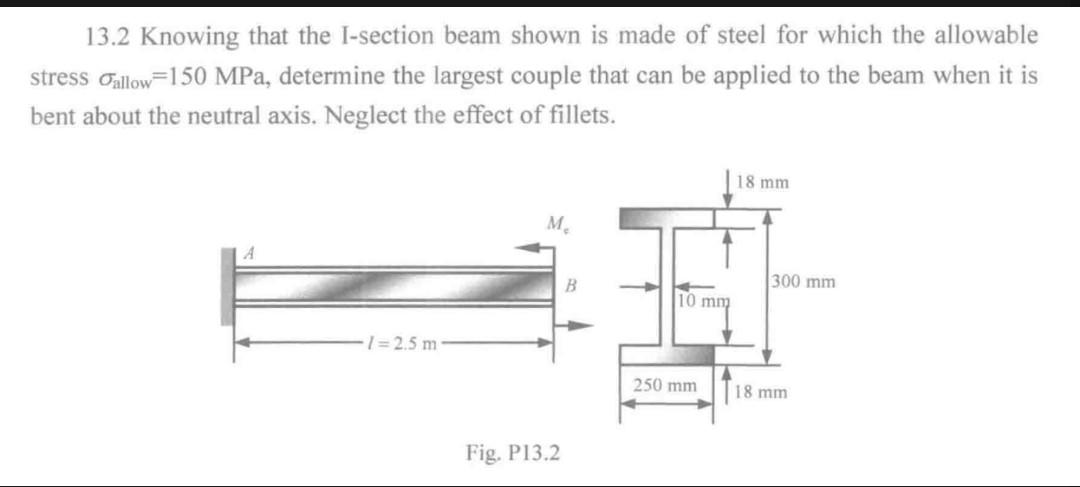

13.2 Knowing that the I-section beam shown is made of steel for which the allowable stress allow=150MPa, determine the largest couple that can be applied to the beam when it is bent about the neutral axis. Neglect the effect of fillets. rig. ris.L

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
