Question: Three forces act on a bracket shown in the figure below. The magnitude of Fi is unknown. The angle d of the angle of Fi

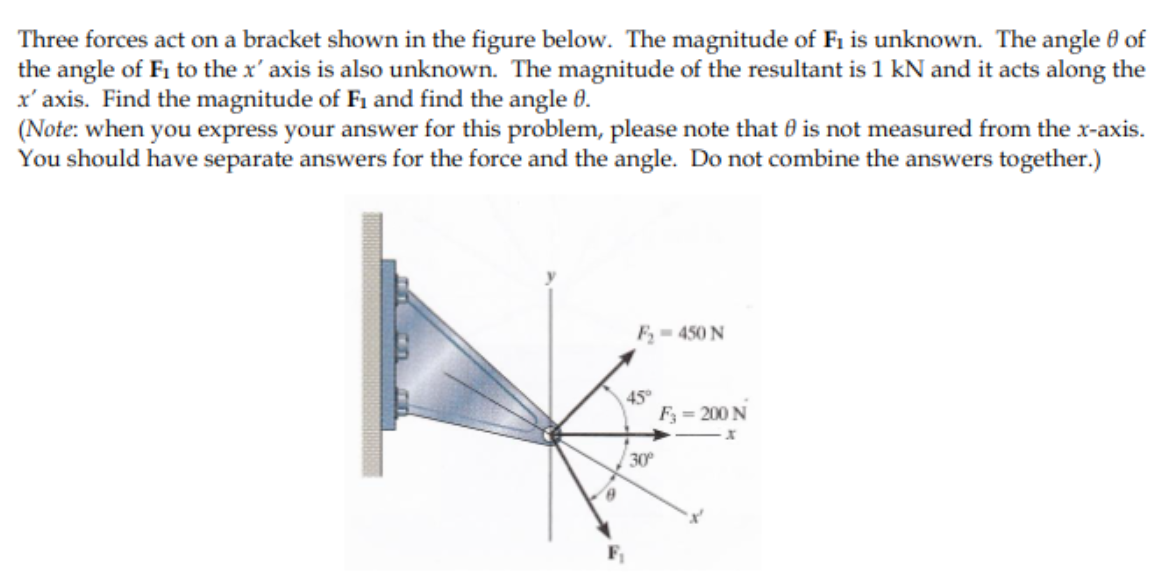

Three forces act on a bracket shown in the figure below. The magnitude of Fi is unknown. The angle d of the angle of Fi to the x' axis is also unknown. The magnitude of the resultant is 1 kN and it acts along the x' axis. Find the magnitude of Fi and find the angle 0. (Note: when you express your answer for this problem, please note that 0 is not measured from the x-axis. You should have separate answers for the force and the angle. Do not combine the answers together.) F - 450 N F. = 200 N -X 30
