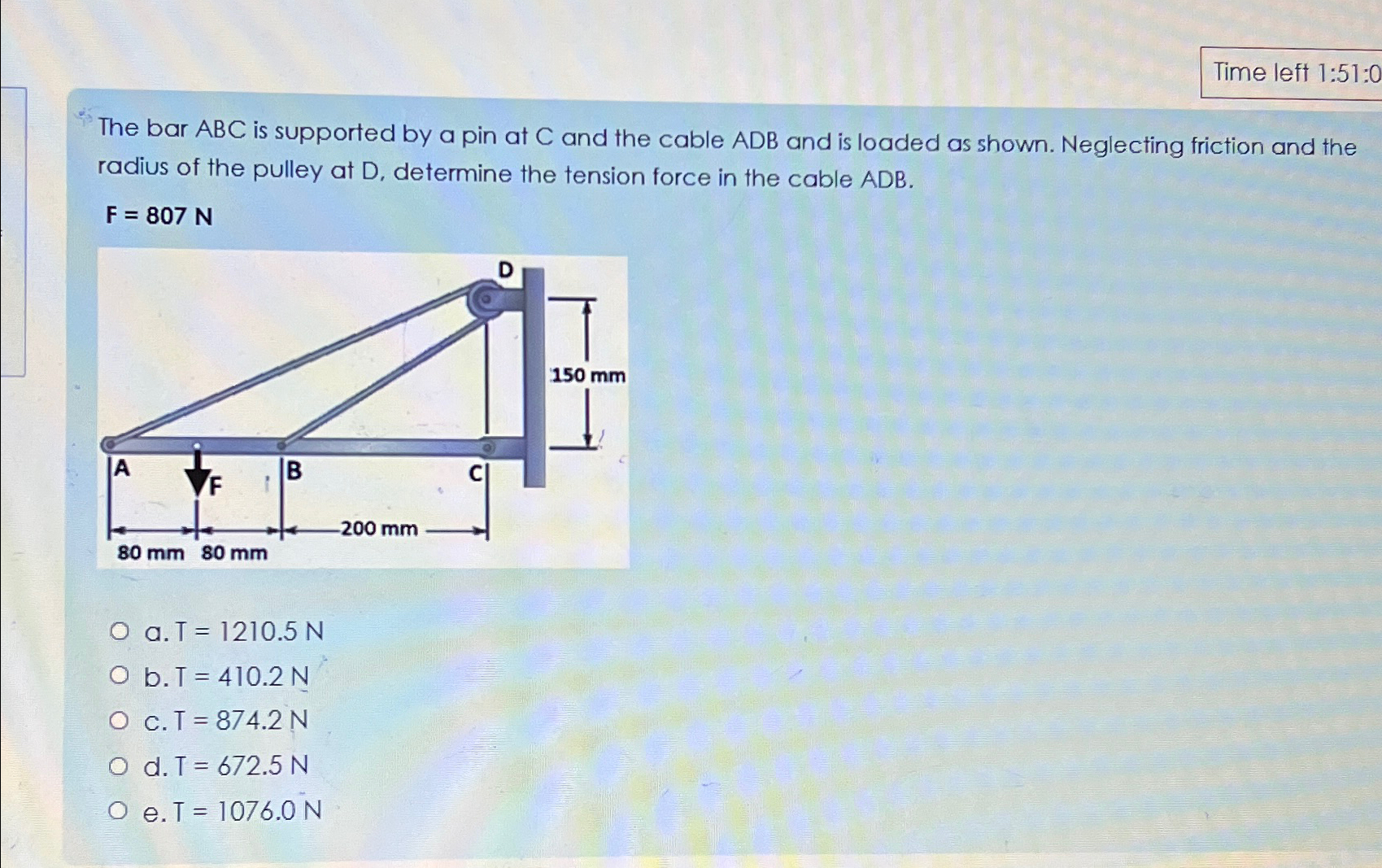

The bar ABC is supported by a pin at $C$ and the cable ADB and is loaded as shown. Neglecting friction and the radius of the pulley at $D,$ determine the tension force in the cable ADB.

$F=807N$

a$.T=1210\mathrm{.}5N$

b$.T=410\mathrm{.}2N$

c$.T=874\mathrm{.}2N$

d$.T=672\mathrm{.}5N$

e$.T=1076\mathrm{.}0N$
