Question: Title: Network diagram. Background: Microsoft applications. Purpose: Learn or review students how to view the project's critical path and other paths through the network diagram.

Title: Network diagram. Background: Microsoft

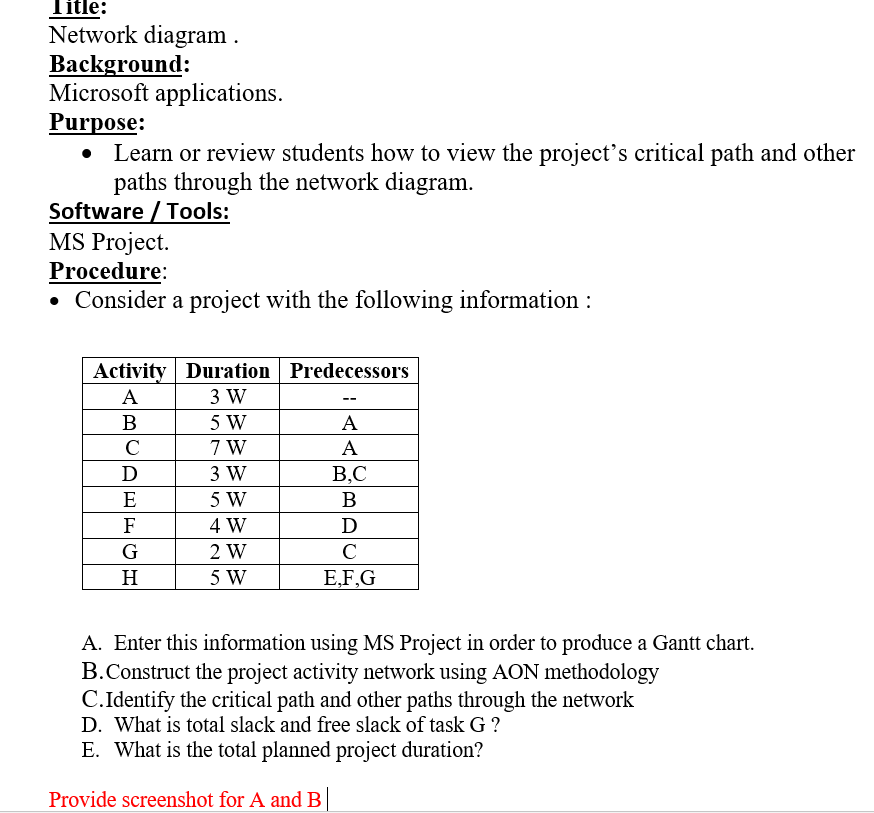

Title: Network diagram. Background: Microsoft applications. Purpose: Learn or review students how to view the project's critical path and other paths through the network diagram. Software / Tools: MS Project. Procedure: Consider a project with the following information : Activity Duration Predecessors A 3W B 5W A 7W A D 3W B,C E 5W B F 4W D G 2W H 5W E,F,G A. Enter this information using MS Project in order to produce a Gantt chart. B.Construct the project activity network using AON methodology C.Identify the critical path and other paths through the network D. What is total slack and free slack of task G? E. What is the total planned project duration? Provide screenshot for A and B
