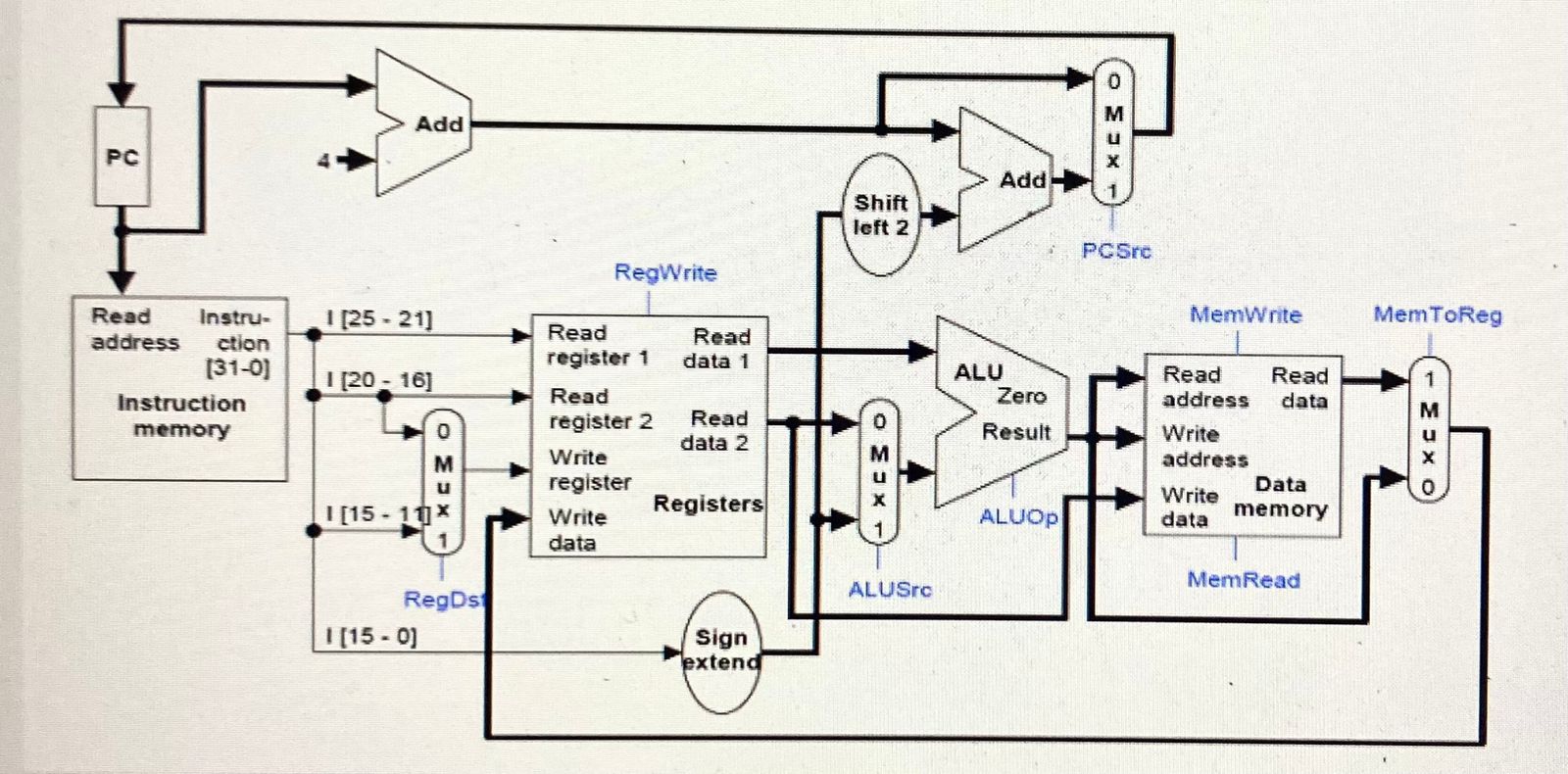

To perform the return from function call implement jr rs instruction $($jump to register rs$)$ in the single cycle datapath shown below. The format of jr instruction is shown below

Field $|$ op $=0|$ rs $|0|$ func $=8|$

Bits $|31-26|25-21|20-6|5-0|$

Show what changes are needed to support jr instruction. You should only add wires and muxes to the datapath; do not modify the main functional units thenselves $($the memory, register file, ALU$).$ Your solution should not lengthen the clock cycle. Assume that the ALU, Memory and Register file all take $2$ns$,$ and everything else is instantaneous. Draw a similar diagram as shown below on your answer sheet and mark on the diagram the changes required for implementation of jr$.$

Also in the diagram write $($next to the signal's name$)$ values of all non$-0$ control signals required for the jr instruction.
