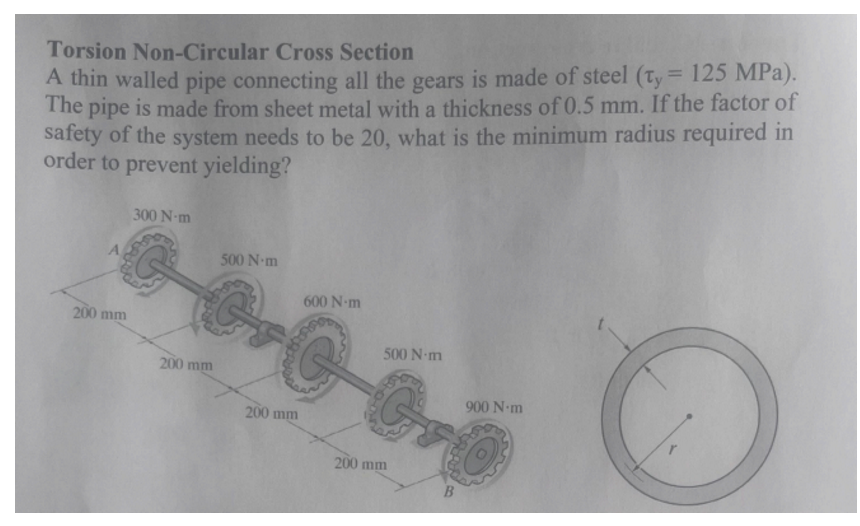

Question: Torsion Non - Circular Cross Section A thin walled pipe connecting all the gears is made of steel ( tau _ ( y ) =

Torsion Non-Circular Cross Section
A thin walled pipe connecting all the gears is made of steel (tau_(y)=125MPa).
The pipe is made from sheet metal with a thickness of 0.5 mm . If the factor of
safety of the system needs to be 20, what is the minimum radius required in
order to prevent yielding?
Torsion Non - Circular Cross Section A thin

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
