Question: Total points available: 1 0 points Q 1 4 points The bent rod shown below is supported at A , B , and C by

Total points available: 10 points
Q14 points

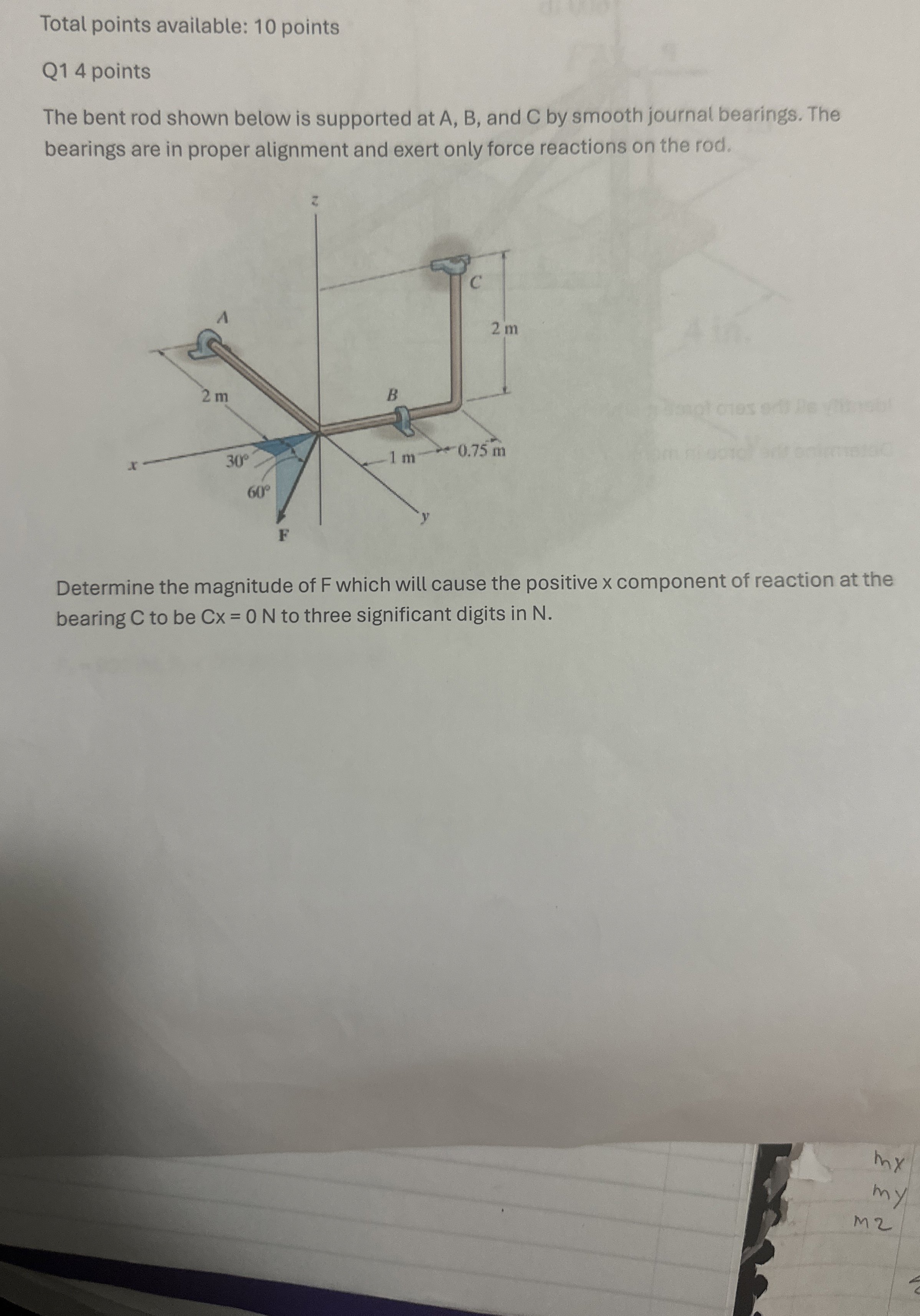

The bent rod shown below is supported at A, B, and C by smooth journal bearings. The bearings are in proper alignment and exert only force reactions on the rod.
Determine the magnitude of F which will cause the positive x component of reaction at the bearing C to be Cx=0N to three significant digits in N .
Total points available: 1 0 points Q 1 4 points

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
