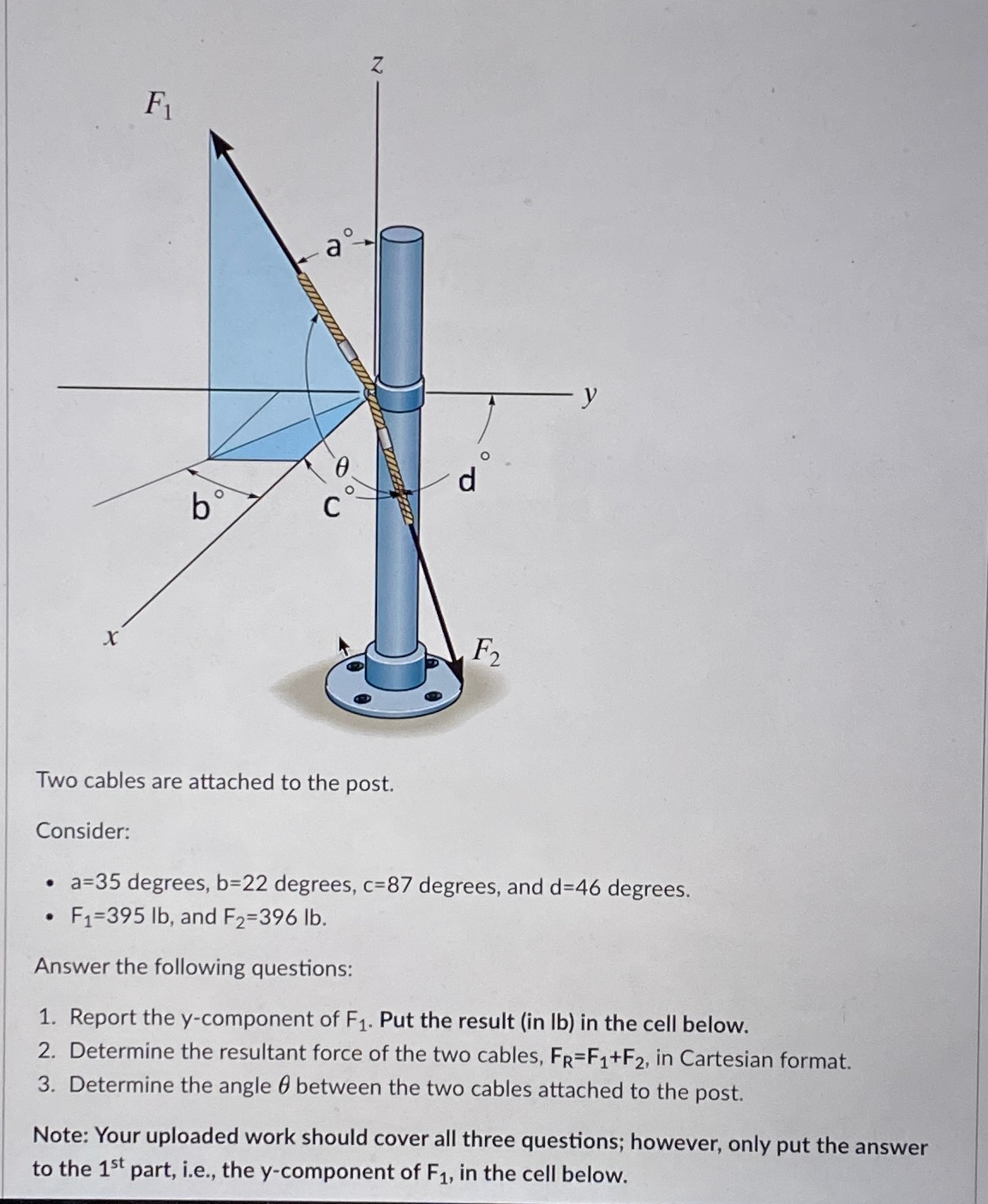

Two cables are attached to the post.

Consider:

$a=35$ degrees, $b=22$ degrees, $c=87$ degrees, and $d=46$ degrees.

$F_1=395lb,$ and $F_2=396lb.$

Answer the following questions:

Report the $y-$component of $F_1.$ Put the result $($in Ib$)$ in the cell below.

Determine the resultant force of the two cables, $F_R=F_1+F_2,$ in Cartesian format.

Determine the angle $$ between the two cables attached to the post.

Note: Your uploaded work should cover all three questions; however, only put the answer to the $1^{st}$ part, i$.$e$.,$ the $y-$component of $F_1,$ in the cell below.
