Question: Two forces are applied to the bracket as shown. a . Determine the angle bewteen the two cables. b . Determine the component of vec

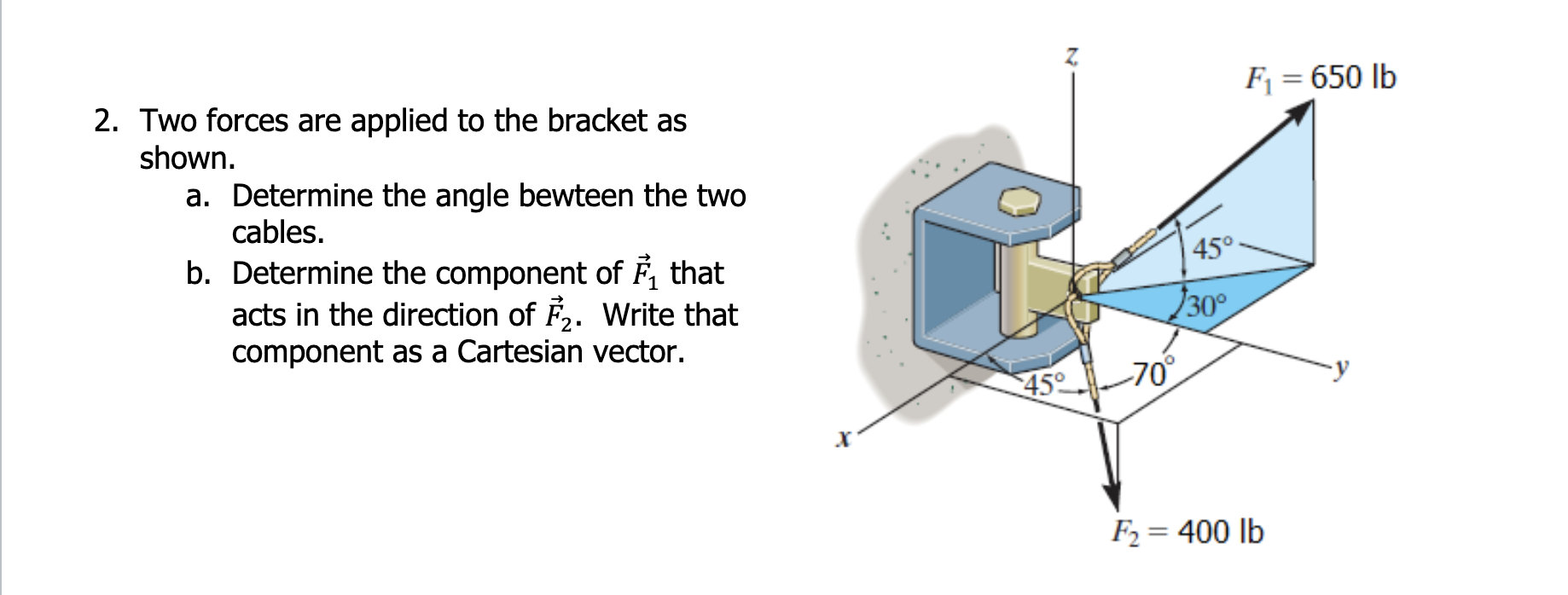

Two forces are applied to the bracket as shown.
a. Determine the angle bewteen the two cables.
b. Determine the component of vec(F)1 that acts in the direction of vec(F)2. Write that component as a Cartesian vector.
Two forces are applied to the bracket as shown. a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
