Question: Two pipes are connected by a manometer, as shown in the figure below. Gage fluid has special gravity S G = 2 . 3 .

Two pipes are connected by a manometer, as shown in the figure below. Gage fluid has special gravity SG=2.3. Determine the pressure
difference, pA-pB, between the pipes.
pA-pB=i

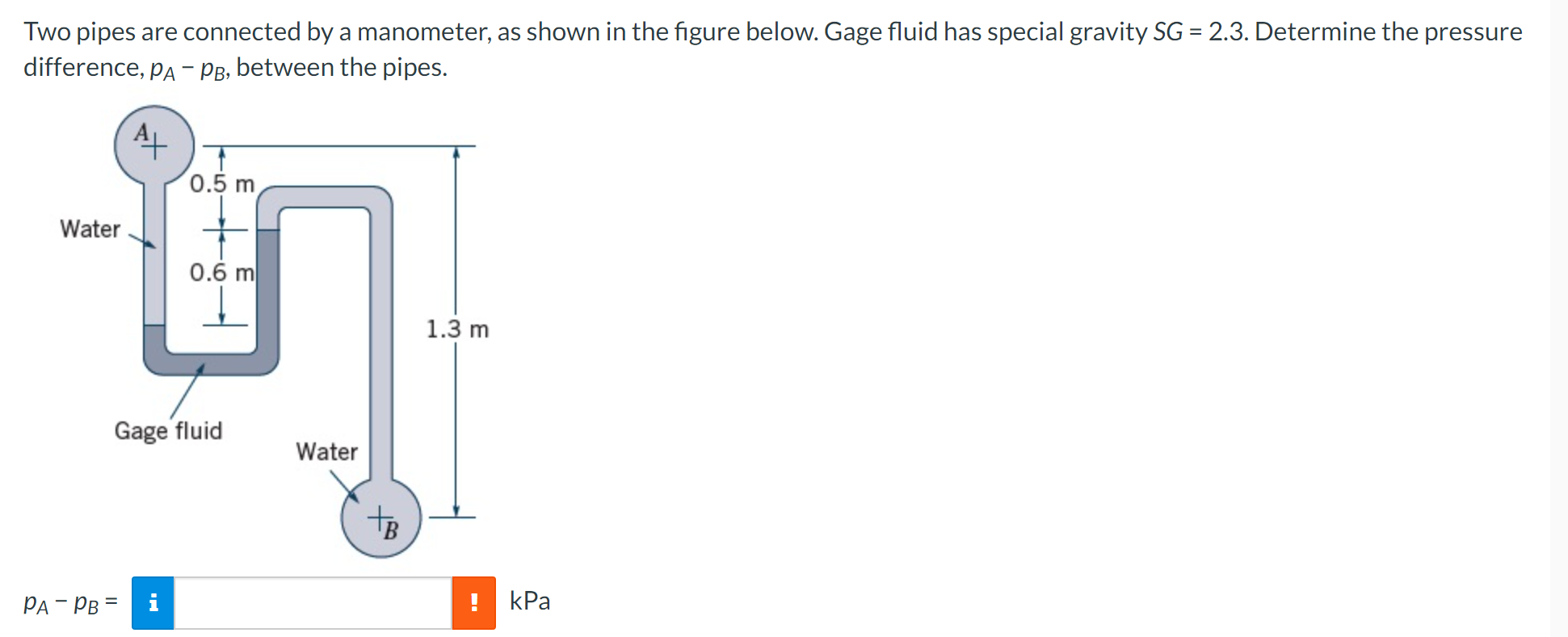

Two pipes are connected by a manometer, as shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
