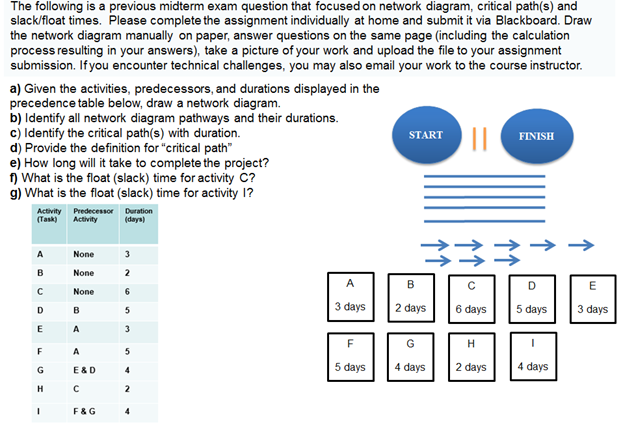

The following is a previous midterm exam question that focused on network diagram, critical path(s) and slack/float times. Please complete the assignment individually at home and submit it via Blackboard. Draw the network diagram manually on paper, answer questions on the same page (including the calculation process resulting in your answers), take a picture of your work and upload the file to your assignment submission. If you encounter technical challenges, you may also email your work to the course instructor. a) Given the activities, predecessors, and durations displayed in the precedence table below, draw a network diagram. b) Identify all network diagram pathways and their durations. C) Identify the critical path(s) with duration FINISH d) Provide the definition for "critical path e) How long will it take to complete the project? f) What is the float (slack) time for activity C? g) What is the float (slack) time for activity 1? Activity Predecessor Duration (Task) Activity (days) START 11 None 3 *** B None 2 A B D E None 6 D B 5 3 days 2 days 6 days 5 days 3 days E A 3 F G H F A 5 G E&D 4 5 days 4 days 2 days 4 days H C 2 1 F&G 4
