Question: Understanding Project Scheduling and Estimation Techniques 1. Draw the PERT Diagram related to the following tasks. Identify the critical path Task Duration Precedence A 15

Understanding Project Scheduling and Estimation

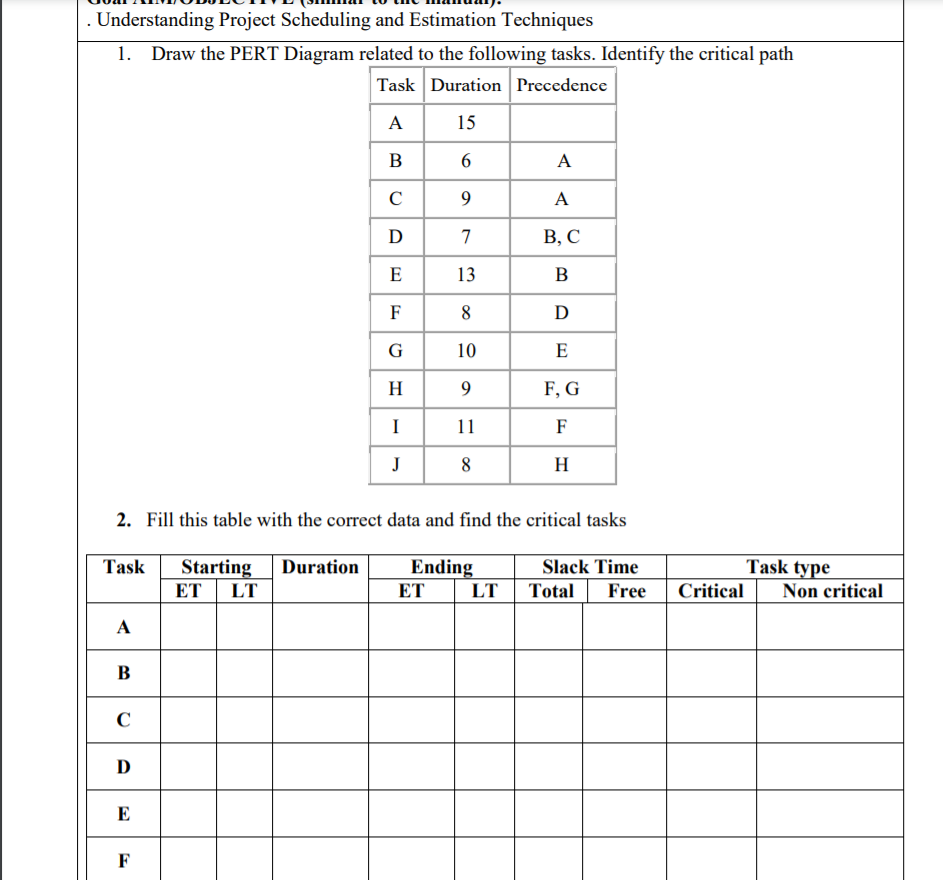

Understanding Project Scheduling and Estimation Techniques 1. Draw the PERT Diagram related to the following tasks. Identify the critical path Task Duration Precedence A 15 B 6 A 9 A D 7 B, C E 13 B F 8 D G 10 E H TE 9 F, G I 11 F J 8 H 2. Fill this table with the correct data and find the critical tasks Task Starting Duration ET Ending ET LT Slack Time Total Free Task type Critical Non critical LT A B C D E F

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

1. Draw the PERT Diagram related to the following tasks. Identify the critical Path. a Precedence Duration 15 9 A 6 A TASK A B D E F G H 1 J B,C B 7 13 8 10 9 11 8 D E F, G F H 2. Draw the GANTT...

Exercise 24 1. Draw the PERT Diagram related to the following tasks. Identify the critical 3 D path IF H1 Task Duration Precedence 11 15 H 2 th testa dedicata B 6 Duratke Tu Bar ETIT Tako Sak Tin...

1. Draw the PERT Diagram related to the following tasks. Task Durationprecedence A 7 B 10 C 15 E 12 F 15 G 8 F. D 2. Draw the GANTT Diagram related to previous tasks 3. Identify the critical path...

1. Draw the PERT Diagram related to the following tasks Duration Precedence Task A B 15 7 B D E F 8 7 10 5 9 8 A,C D F G E H 8 F,G 2. Draw the GANTT Diagram related to previous tasks

please don't solve it with paper 3. Draw the PERT Diagram related to the following tasks Task Duration precedence A 3 B 4 A 2 A D 5 B E 1 F 2 G 4 DE H 3 F G 4. Draw the GANTT Diagram related to...
