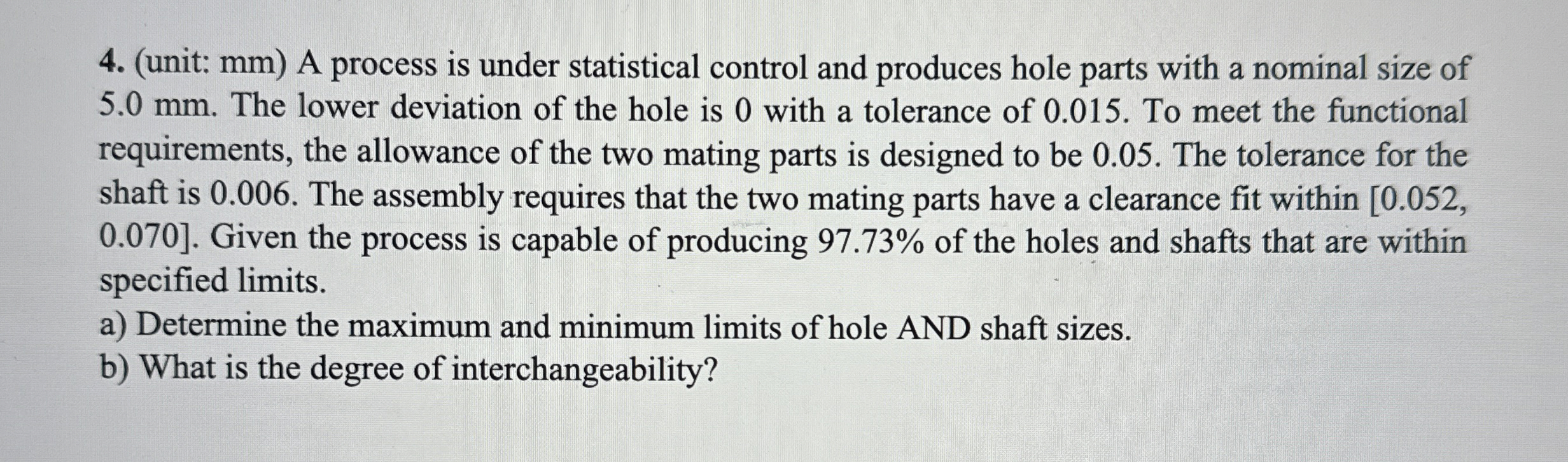

Question: ( unit: mm ) A process is under statistical control and produces hole parts with a nominal size of 5 . 0 mm . The

(unit: mm ) A process is under statistical control and produces hole parts with a nominal size of 5.0 mm . The lower deviation of the hole is 0 with a tolerance of 0.015. To meet the functional requirements, the allowance of the two mating parts is designed to be 0.05. The tolerance for the shaft is 0.006. The assembly requires that the two mating parts have a clearance fit within ,0.070]. Given the process is capable of producing 97.73% of the holes and shafts that are within specified limits.
a) Determine the maximum and minimum limits of hole AND shaft sizes.
b) What is the degree of interchangeability?
