Question: URGENT ( please solve it correctly ) Problem 2 : ( 2 5 points ) 5 The following fluid system is given. There are three

URGENT (please solve it correctly )
Problem 2: (25 points)
5

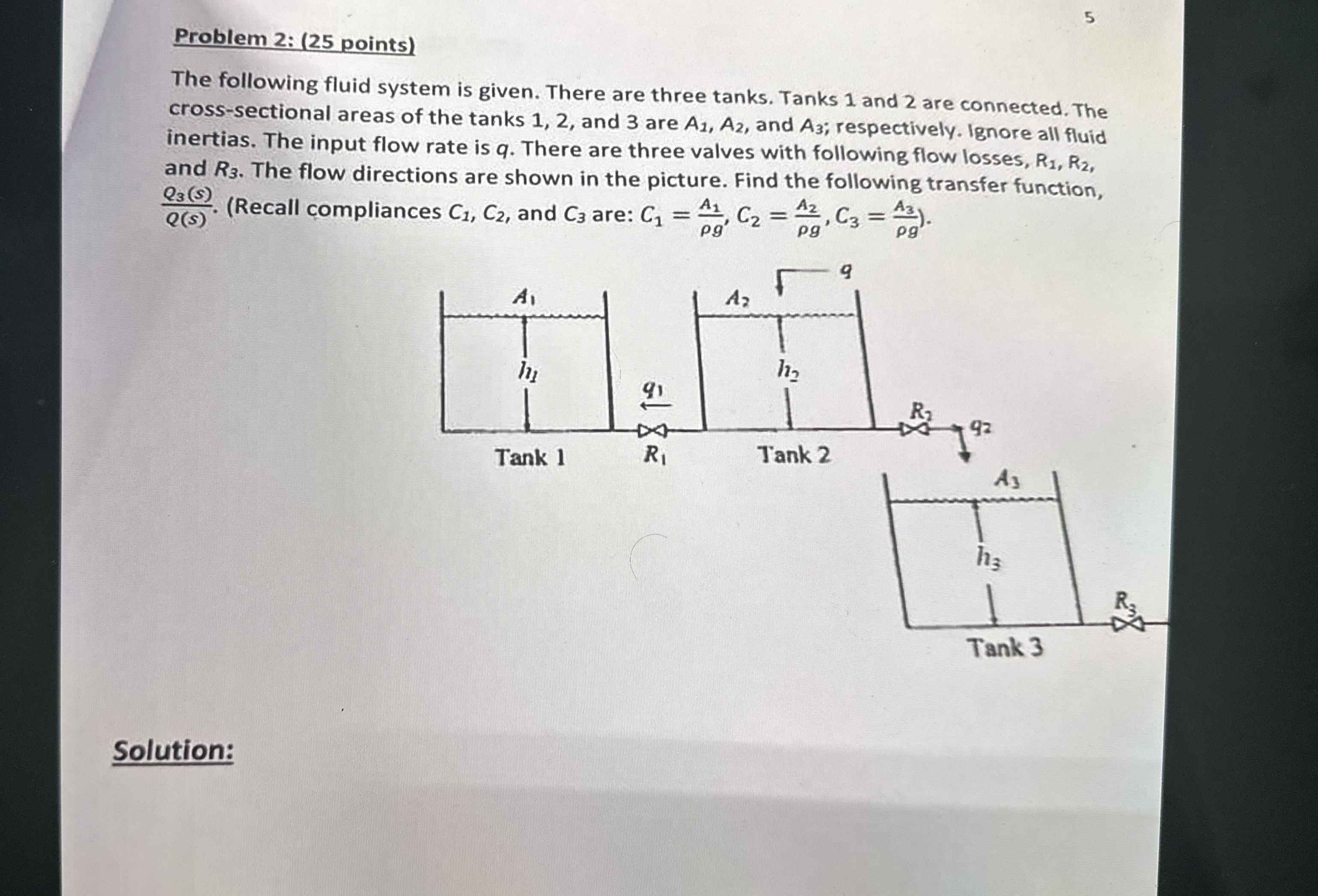

The following fluid system is given. There are three tanks. Tanks 1 and 2 are connected. The cross-sectional areas of the tanks 1,2, and 3 are A1,A2, and A3; respectively. Ignore all fluid inertias. The input flow rate is q. There are three valves with following flow losses, R1,R2, and R3. The flow directions are shown in the picture. Find the following transfer function, Q3(s)Q(s).(Recall compliances C1,C2, and C3 are: C1=A1g,C2=A2g,C3=A3g).
Solution:
