Question: Use arena software to help you solve this problem, I will upvote correct solution. Thank you Question In xyz car factory, the cars are painted

Use arena software to help you solve this problem, I will upvote correct solution. Thank you

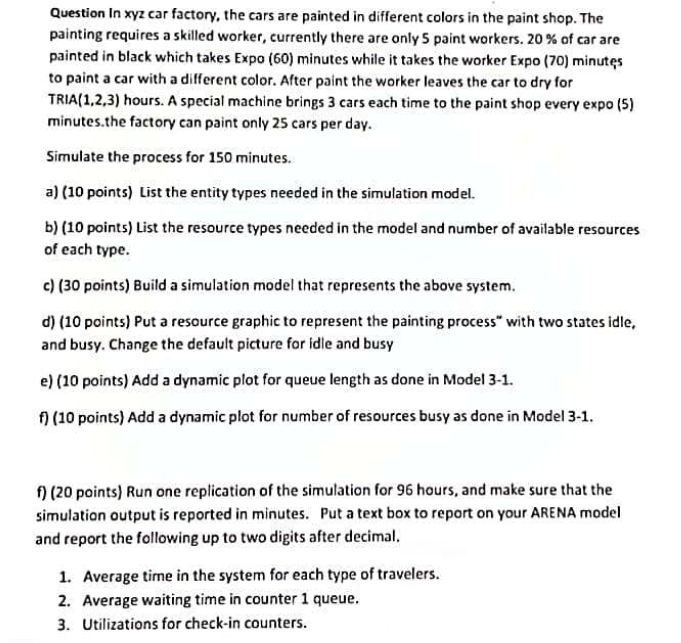

Question In xyz car factory, the cars are painted in different colors in the paint shop. The painting requires a skilled worker, currently there are only 5 paint workers. 20 % of car are painted in black which takes Expo (60) minutes while it takes the worker Expo (70) minutes to paint a car with a different color. After paint the worker leaves the car to dry for TRIA(1,2,3) hours. A special machine brings 3 cars each time to the paint shop every expo (5) minutes.the factory can paint only 25 cars per day. Simulate the process for 150 minutes. a) (10 points) List the entity types needed in the simulation model. b) (10 points) List the resource types needed in the model and number of available resources of each type. c) (30 points) Build a simulation model that represents the above system. d) (10 points) Put a resource graphic to represent the painting process with two states idle, and busy. Change the default picture for idle and busy e) (10 points) Add a dynamic plot for queue length as done in Model 3-1. f) (10 points) Add a dynamic plot for number of resources busy as done in Model 3-1. f) (20 points) Run one replication of the simulation for 96 hours, and make sure that the simulation output is reported in minutes. Put a text box to report on your ARENA model and report the following up to two digits after decimal. 1. Average time in the system for each type of travelers. 2. Average waiting time in counter 1 queue. 3. Utilizations for check-in countersStep by Step Solution
There are 3 Steps involved in it
Get step-by-step solutions from verified subject matter experts
