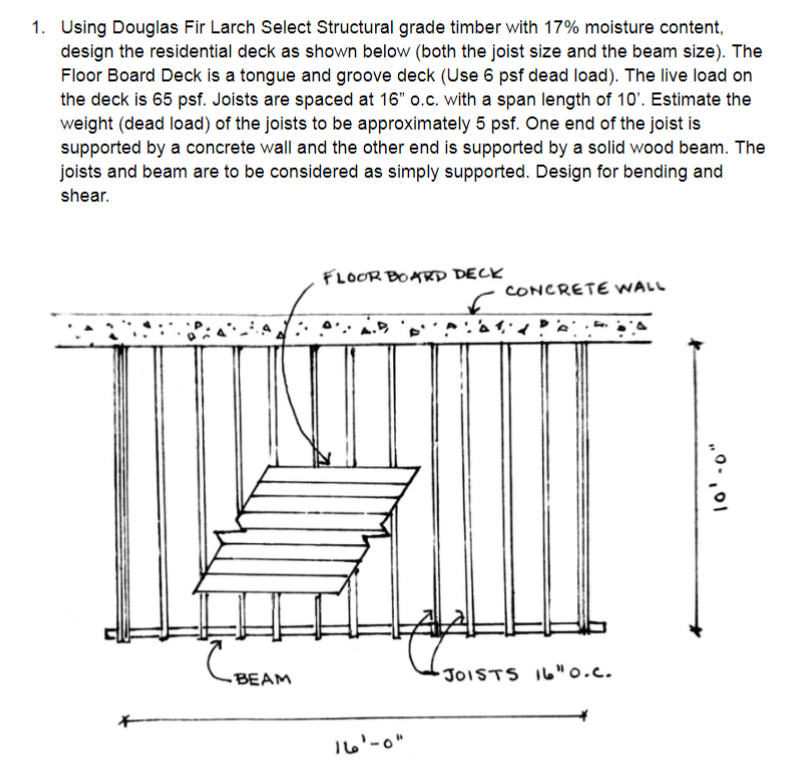

Using Douglas Fir Larch Select Structural grade timber with $17\%$ moisture content,

design the residential deck as shown below $($both the joist size and the beam size$).$ The

Floor Board Deck is a tongue and groove deck $($Use $6$ psf dead load$).$ The live load on

the deck is $65$ psf$.$ Joists are spaced at ${16}^{\text{'}\text{'}}$ o$.$c$.$ with a span length of ${10}^{\text{'}}.$ Estimate the

weight $($dead load$)$ of the joists to be approximately $5$ psf$.$ One end of the joist is

supported by a concrete wall and the other end is supported by a solid wood beam. The

joists and beam are to be considered as simply supported. Design for bending and

shear.
