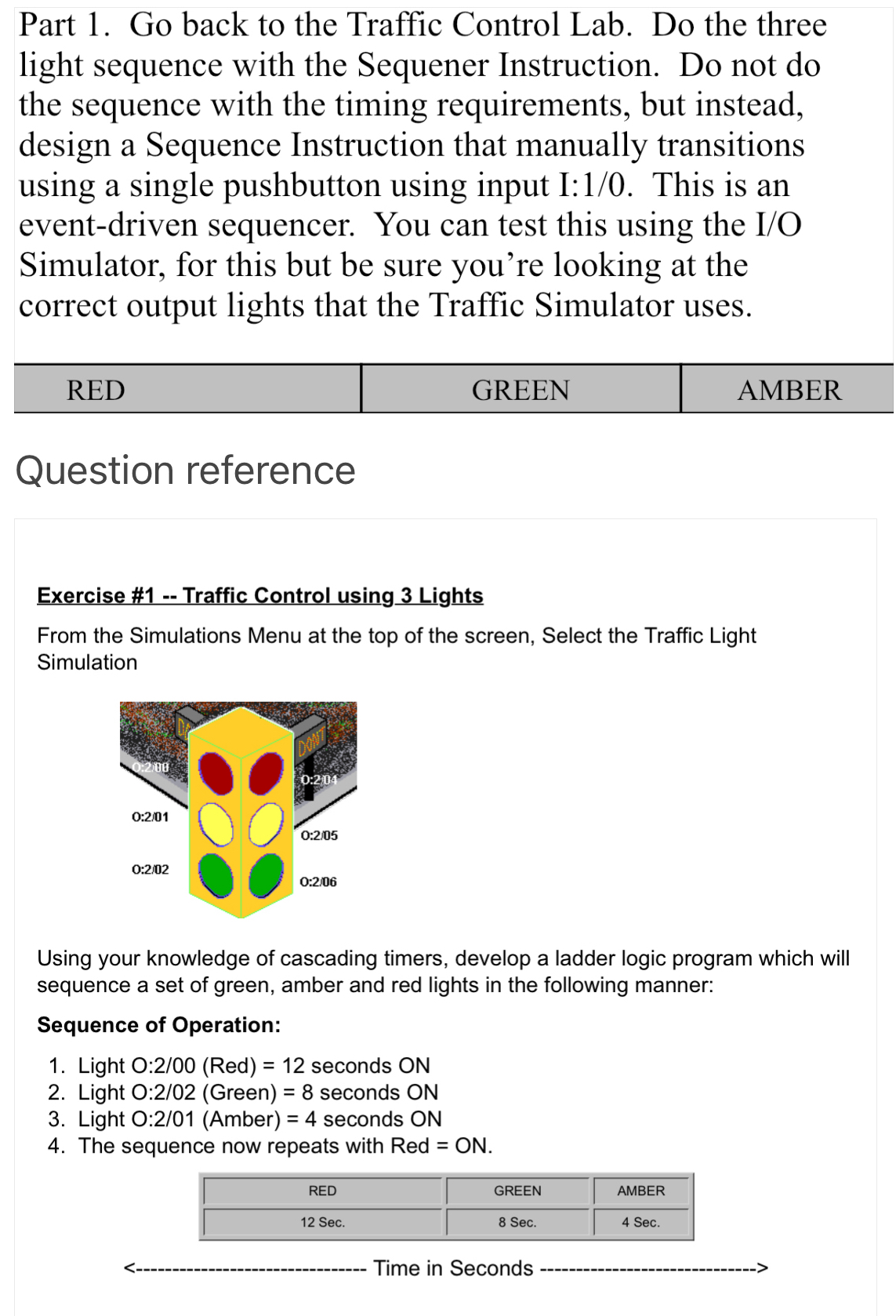

Using logixpro go back to the Traffic Control Lab. Do the three light sequence with the Sequener Instruction. Do not do the sequence with the timing requirements, but instead, design a Sequence Instruction that manually transitions using a single pushbutton using input I:$\frac{1}{0}.$ This is an event$-$driven sequencer. You can test this using the I$/$O Simulator, for this but be sure you're looking at the correct output lights that the Traffic Simulator uses.

$\backslash$table$[[$RED$,$GREEN,AMBER$]]$

Question reference

Exercise #$1--$ Traffic Control using $3$ Lights

From the Simulations Menu at the top of the screen, Select the Traffic Light Simulation

Using your knowledge of cascading timers, develop a ladder logic program which will sequence a set of green, amber and red lights in the following manner:

Sequence of Operation:

Light Red
