Question: . Using Multisim, implement the logic function specified in the below table ( Table 1 ) by using a multiplexer for 8 - input data

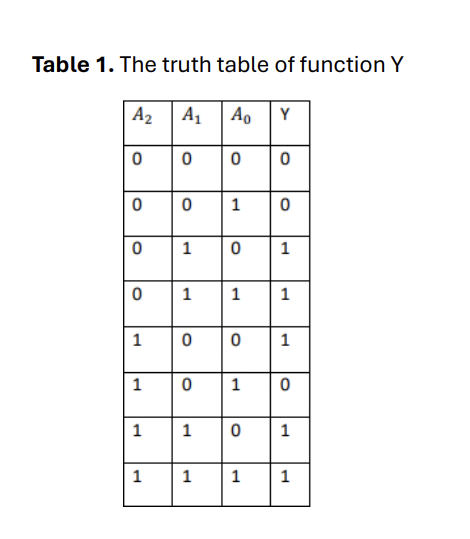

. Using Multisim, implement the logic function specified in the below table (Table 1) by using a multiplexer for 8-input data selector/multiplexer. Compare this method with the discrete logic gate implementation. In advance, use the 74HC151 to apply this output Y and attach a blue digital probe that lights when the function is one. The Functional diagram and the pin names of the 74HC1518-bit Multiplexer are given in Appendix A. Table 1. The truth table of function \( Y \)
. Using Multisim, implement the logic function

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
