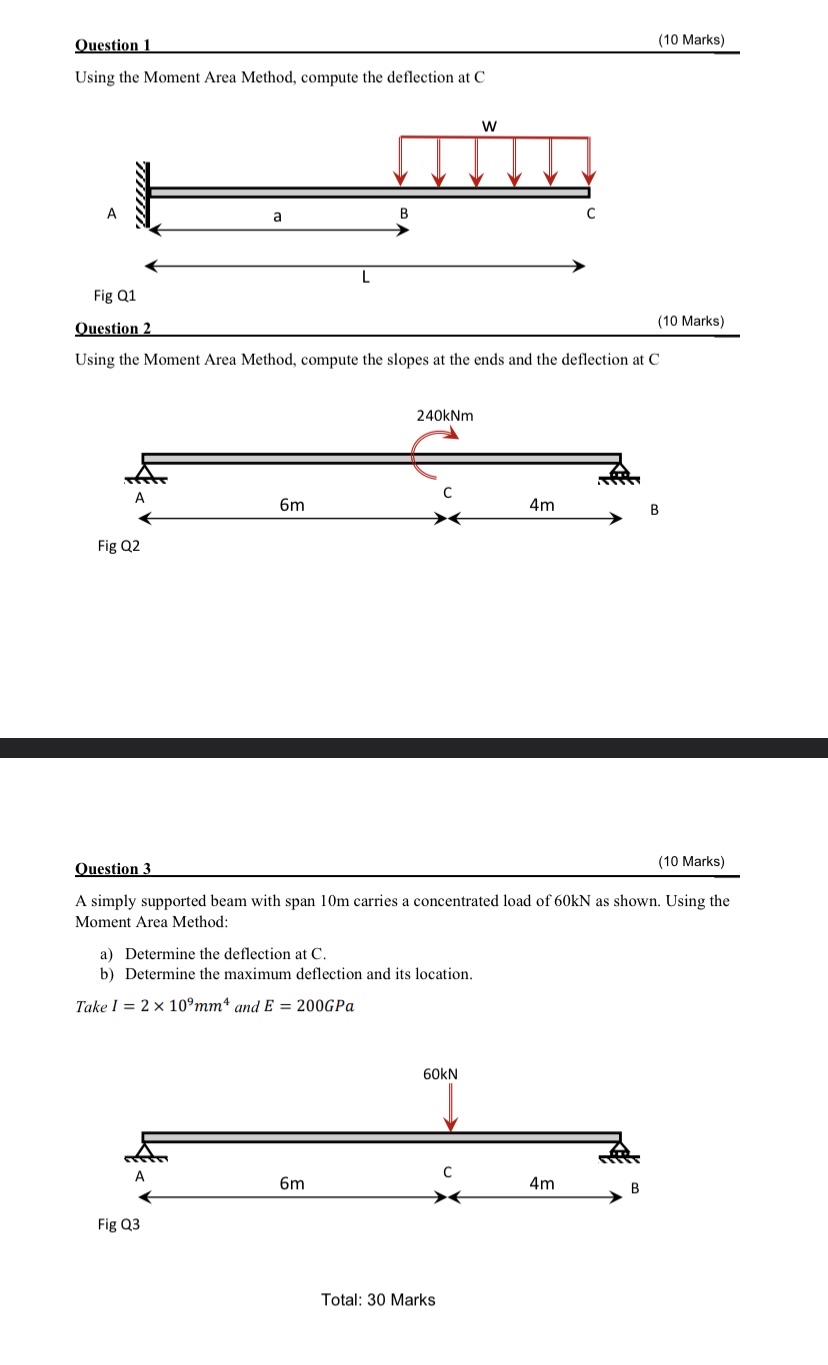

Using the Moment Area Method, compute the deflection at C

F

Question $2$

Using the Moment Area Method, compute the slopes at the ends and the deflection at C

Question $3$

A simply supported beam with span $10$ m carries a concentrated load of $60$ kN as shown. Using the

Moment Area Method:

a$)$ Determine the deflection at C $.$

b$)$ Determine the maximum deflection and its location.

Take $I=2{10}^{9}m{m}^4$ and $E=200$GPa

Solve Q$1,$Q$2$ and Q$3$
