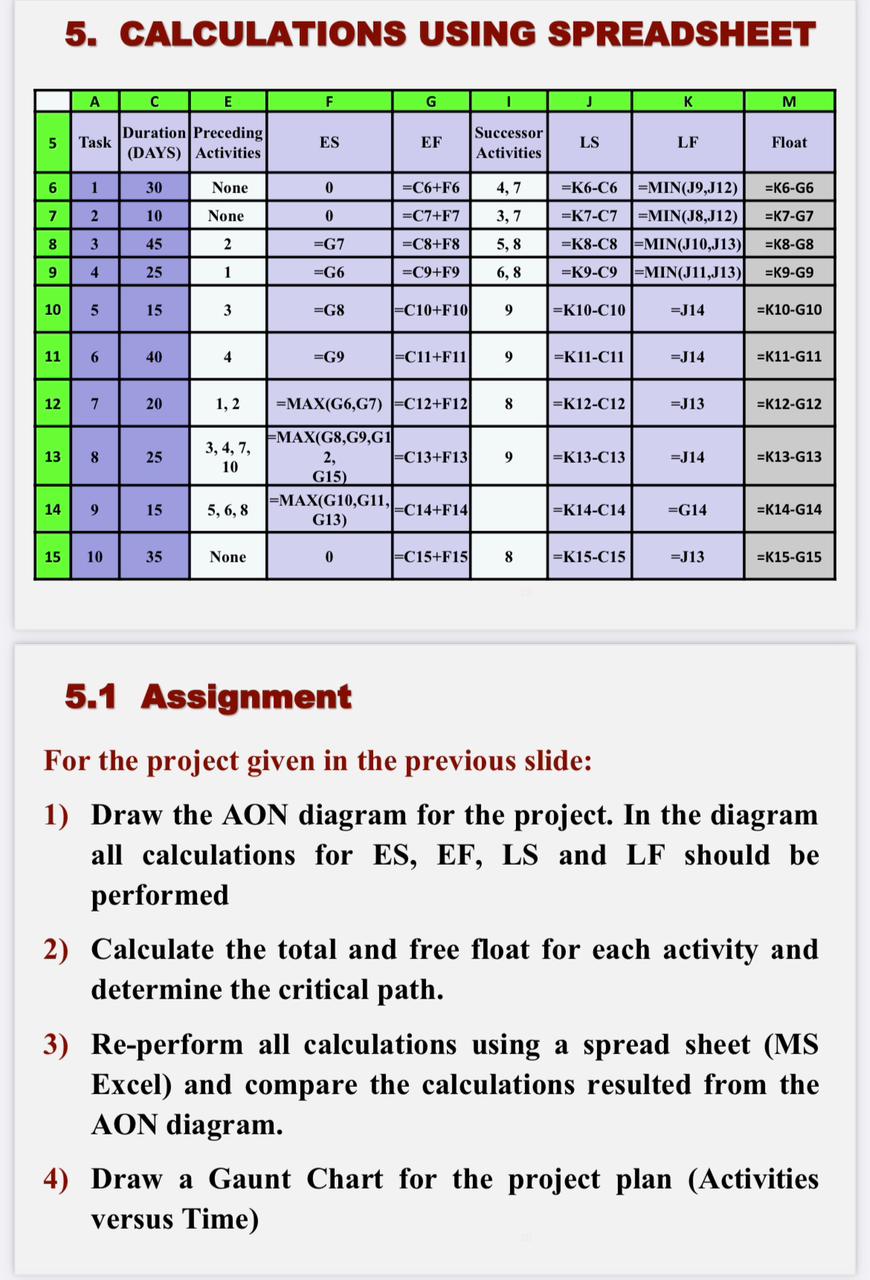

VCALCULATIONS USING SPREADSHEET

$5\mathrm{.}1$ Assignment

For the project given in the previous slide:

Draw the AON diagram for the project. In the diagram

all calculations for ES$,$ EF$,$ LS and LF should be

performed

Calculate the total and free float for each activity and

determine the critical path.

Re$-$perform all calculations using a spread sheet $($MS

Excel$)$ and compare the calculations resulted from the

AON diagram.

Draw a Gaunt Chart for the project plan $($Activities

versus Time$)$
