Question: VHDL code for the highlighted part FIRST ACTIVITY (100/100) PROBLEM: An alternative implementation of the multiplication operation is depicted in the figure for 4-bit unsigned

VHDL code for the highlighted part FIRST ACTIVITY (100/100) PROBLEM: An

VHDL code for the highlighted part

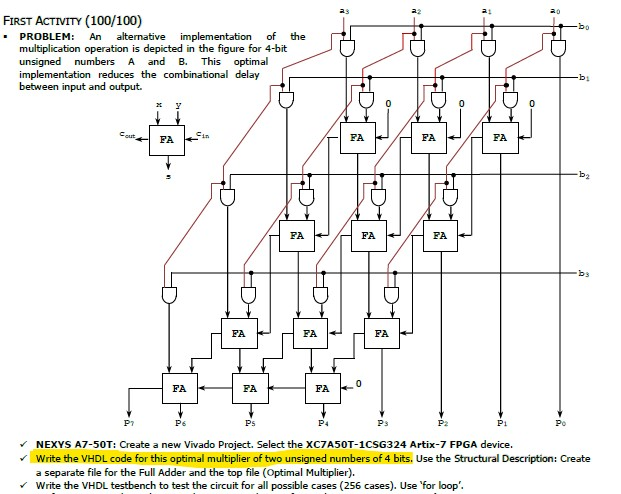

FIRST ACTIVITY (100/100) PROBLEM: An alternative implementation of the multiplication operation is depicted in the figure for 4-bit unsigned numbers A and B. This optimal implementation reduces the combinational delay between input and output. FA FA FA FA FA FA FA bs FA FA FA FA FA FA P7 Pe Ps P4 P2 P1 Po NEXYS A7-50T: Create a new Vivado Project. Select the XC7A50T-ICSG324 Artix-7 FPGA device. Write the VHDL code for this optimal multiplier of two unsigned numbers of 4 bits, Use the Structural Description: Create a separate file for the Full Adder and the top file (Optimal Multiplier). write the VHDL testbench to test the circuit for all possible cases (256 cases). Use for loop v
