Question: VI. (10) 2 A pneumatic PI temperature controller has an output pressure of 10psig when the set point and process temperature coincide. The set point

VI. (10) 2 A pneumatic PI temperature controller has an output

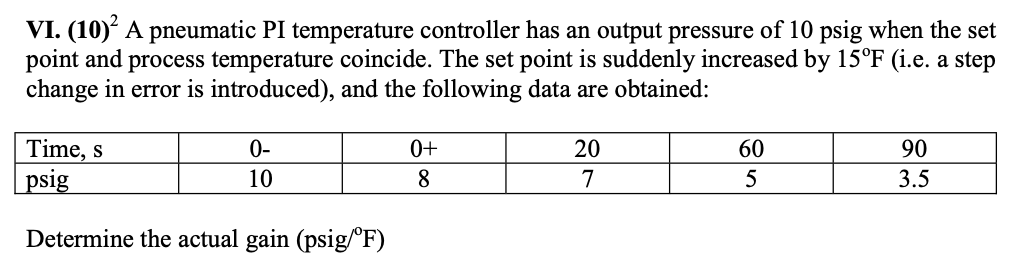

VI. (10) 2 A pneumatic PI temperature controller has an output pressure of 10psig when the set point and process temperature coincide. The set point is suddenly increased by 15F (i.e. a step change in error is introduced), and the following data are obtained: Determine the actual gain (psig/F)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
