• What is the minimum time to complete the project above?
• What is the minimum cost to complete the project in minimum time?
• What is the minimum cost to complete the project in 22 days?
•

  •

    •


Transcribed Image Text:

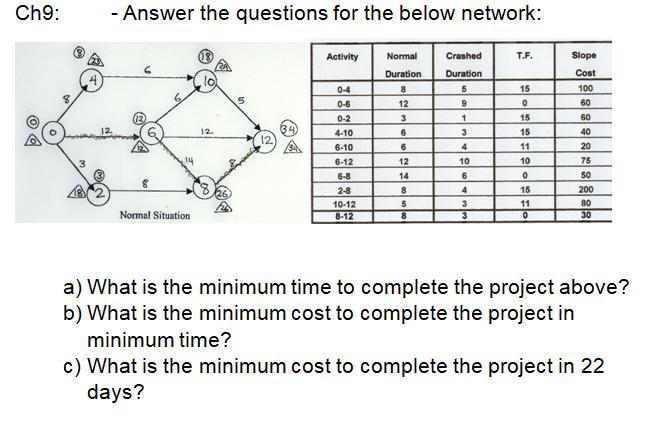

Ch9: DO 8, 182 - Answer the questions for the below network: Normal Situation lo) 12. 12 S Activity 0-4 0-6 0-2 4-10 6-10 6-12 6-8 2-8 10-12 8-12 Normal Duration 8 12 3 6 6 12 14 8 5 8 Crashed Duration 5 9 1 3 4 10 6 4 3 3 T.F. 15 0 15 15 11 10 0 15 11 0 Slope Cost 100 60 60 40 20 75 50 200 80 30 a) What is the minimum time to complete the project above? b) What is the minimum cost to complete the project in minimum time? c) What is the minimum cost to complete the project in 22 days? Ch9: DO 8, 182 - Answer the questions for the below network: Normal Situation lo) 12. 12 S Activity 0-4 0-6 0-2 4-10 6-10 6-12 6-8 2-8 10-12 8-12 Normal Duration 8 12 3 6 6 12 14 8 5 8 Crashed Duration 5 9 1 3 4 10 6 4 3 3 T.F. 15 0 15 15 11 10 0 15 11 0 Slope Cost 100 60 60 40 20 75 50 200 80 30 a) What is the minimum time to complete the project above? b) What is the minimum cost to complete the project in minimum time? c) What is the minimum cost to complete the project in 22 days?

Answer rating: 100% (QA)

Project schedule The schedule with ES EF LS LF is as modeled in excel Excel Formulation 1 2 Activity ... View the full answer
