Question: Wind rose Given the data below and the template, determine if the proposed runway alignment indicated by the plastic template on the page is sufficient

Wind rose Given the data below and the template,

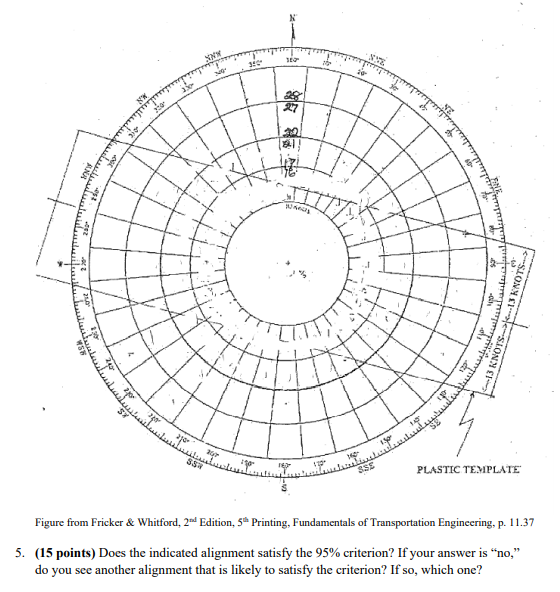

Wind rose Given the data below and the template, determine if the proposed runway alignment indicated by the "plastic template" on the page is sufficient to cover 95% of the wind observations. Direction % % % % % % 41 10 1.825138 0.00 0.00 0.32 0.000 0.000 0.000 20 2.232304 0.00 0.01 0.29 0.000 0.000 0.000 30 2.307275 0.00 0.01 0.20 0.001 0.000 0.001 40 1.980249 0.00 0.00 0.11 0.000 0.000 0.000 50 1.726901 0.00 0.00 0.06 0.000 0.000 0.000 60 1.659687 0.00 0.01 0.04 0.000 0.000 0.000 70 1.156869 0.00 0.00 0.03 0.001 0.000 0.000 80 1.009513 0.00 0.00 0.03 0.000 0.000 0.000 90 0.88801 0.00 0.00 0.02 0.000 0.000 0.000 100 0.696706 0.00 0.00 0.02 0.003 0.000 0.000 110 0.676025 0.00 0.00 0.03 0.000 0.000 0.000 120 0.749703 0.00 0.00 0.04 0.000 0.000 0.000 130 0.723851 0.00 0.00 0.04 0.000 0.000 0.000 140 0.654051 0.00 0.00 0.07 0.001 0.000 0.000 150 0.60881 0.00 0.01 0.05 0.000 0.000 0.000 160 0.64371 0.00 0.02 0.14 0.001 0.000 0.000 170 0.827258 0.00 0.01 0.18 0.001 0.000 0.000 180 1.221498 0.00 0.03 0.25 0.000 0.000 0.000 190 1.592472 0.00 0.02 0.36 0.000 0.000 0.000 200 2.069438 0.00 0.03 0.48 0.000 0.000 0.000 210 2.506334 0.00 0.03 0.43 0.003 0.000 0.000 220 3.580477 0.01 0.05 0.58 0.000 0.000 0.000 230 4.406442 0.01 0.13 0.81 0.000 0.001 0.000 240 4.498216 0.02 0.11 1.01 0.001 0.003 0.001 250 3.33747 0.04 0.15 0.94 0.000 0.010 0.003 260 2.854041 0.03 0.18 0.92 0.000 0.006 0.000 270 2.34993 0.04 0.18 0.85 0.000 0.003 0.000 280 2.153456 0.02 0.14 0.86 0.000 0.003 0.000 290 2.066853 0.01 0.13 0.92 0.000 0.000 0.000 300 1.794116 0.01 0.09 0.76 0.000 0.000 0.000 310 1.467091 0.00 0.04 0.42 0.000 0.000 0.000 320 1.14265 0.00 0.02 0.32 0.000 0.000 0.000 330 1.030195 0.00 0.01 0.25 0.000 0.000 0.000 340 0.929373 0.00 0.01 0.20 0.000 0.000 0.000 350 0.955225 0.00 0.02 0.20 0.000 0.000 0.000 360 1.280958 0.00 0.02 0.29 0.000 0.000 0.000 Calm 24.178% NY e- N* 230 J KNOTS- 4-13 KNOTS ajo 358 SSE PLASTIC TEMPLATE Figure from Fricker & Whitford, 2nd Edition, 5* Printing, Fundamentals of Transportation Engineering, p. 11.37 5. (15 points) Does the indicated alignment satisfy the 95% criterion? If your answer is no," do you see another alignment that is likely to satisfy the criterion? If so, which one? Wind rose Given the data below and the template, determine if the proposed runway alignment indicated by the "plastic template" on the page is sufficient to cover 95% of the wind observations. Direction % % % % % % 41 10 1.825138 0.00 0.00 0.32 0.000 0.000 0.000 20 2.232304 0.00 0.01 0.29 0.000 0.000 0.000 30 2.307275 0.00 0.01 0.20 0.001 0.000 0.001 40 1.980249 0.00 0.00 0.11 0.000 0.000 0.000 50 1.726901 0.00 0.00 0.06 0.000 0.000 0.000 60 1.659687 0.00 0.01 0.04 0.000 0.000 0.000 70 1.156869 0.00 0.00 0.03 0.001 0.000 0.000 80 1.009513 0.00 0.00 0.03 0.000 0.000 0.000 90 0.88801 0.00 0.00 0.02 0.000 0.000 0.000 100 0.696706 0.00 0.00 0.02 0.003 0.000 0.000 110 0.676025 0.00 0.00 0.03 0.000 0.000 0.000 120 0.749703 0.00 0.00 0.04 0.000 0.000 0.000 130 0.723851 0.00 0.00 0.04 0.000 0.000 0.000 140 0.654051 0.00 0.00 0.07 0.001 0.000 0.000 150 0.60881 0.00 0.01 0.05 0.000 0.000 0.000 160 0.64371 0.00 0.02 0.14 0.001 0.000 0.000 170 0.827258 0.00 0.01 0.18 0.001 0.000 0.000 180 1.221498 0.00 0.03 0.25 0.000 0.000 0.000 190 1.592472 0.00 0.02 0.36 0.000 0.000 0.000 200 2.069438 0.00 0.03 0.48 0.000 0.000 0.000 210 2.506334 0.00 0.03 0.43 0.003 0.000 0.000 220 3.580477 0.01 0.05 0.58 0.000 0.000 0.000 230 4.406442 0.01 0.13 0.81 0.000 0.001 0.000 240 4.498216 0.02 0.11 1.01 0.001 0.003 0.001 250 3.33747 0.04 0.15 0.94 0.000 0.010 0.003 260 2.854041 0.03 0.18 0.92 0.000 0.006 0.000 270 2.34993 0.04 0.18 0.85 0.000 0.003 0.000 280 2.153456 0.02 0.14 0.86 0.000 0.003 0.000 290 2.066853 0.01 0.13 0.92 0.000 0.000 0.000 300 1.794116 0.01 0.09 0.76 0.000 0.000 0.000 310 1.467091 0.00 0.04 0.42 0.000 0.000 0.000 320 1.14265 0.00 0.02 0.32 0.000 0.000 0.000 330 1.030195 0.00 0.01 0.25 0.000 0.000 0.000 340 0.929373 0.00 0.01 0.20 0.000 0.000 0.000 350 0.955225 0.00 0.02 0.20 0.000 0.000 0.000 360 1.280958 0.00 0.02 0.29 0.000 0.000 0.000 Calm 24.178% NY e- N* 230 J KNOTS- 4-13 KNOTS ajo 358 SSE PLASTIC TEMPLATE Figure from Fricker & Whitford, 2nd Edition, 5* Printing, Fundamentals of Transportation Engineering, p. 11.37 5. (15 points) Does the indicated alignment satisfy the 95% criterion? If your answer is no," do you see another alignment that is likely to satisfy the criterion? If so, which one
