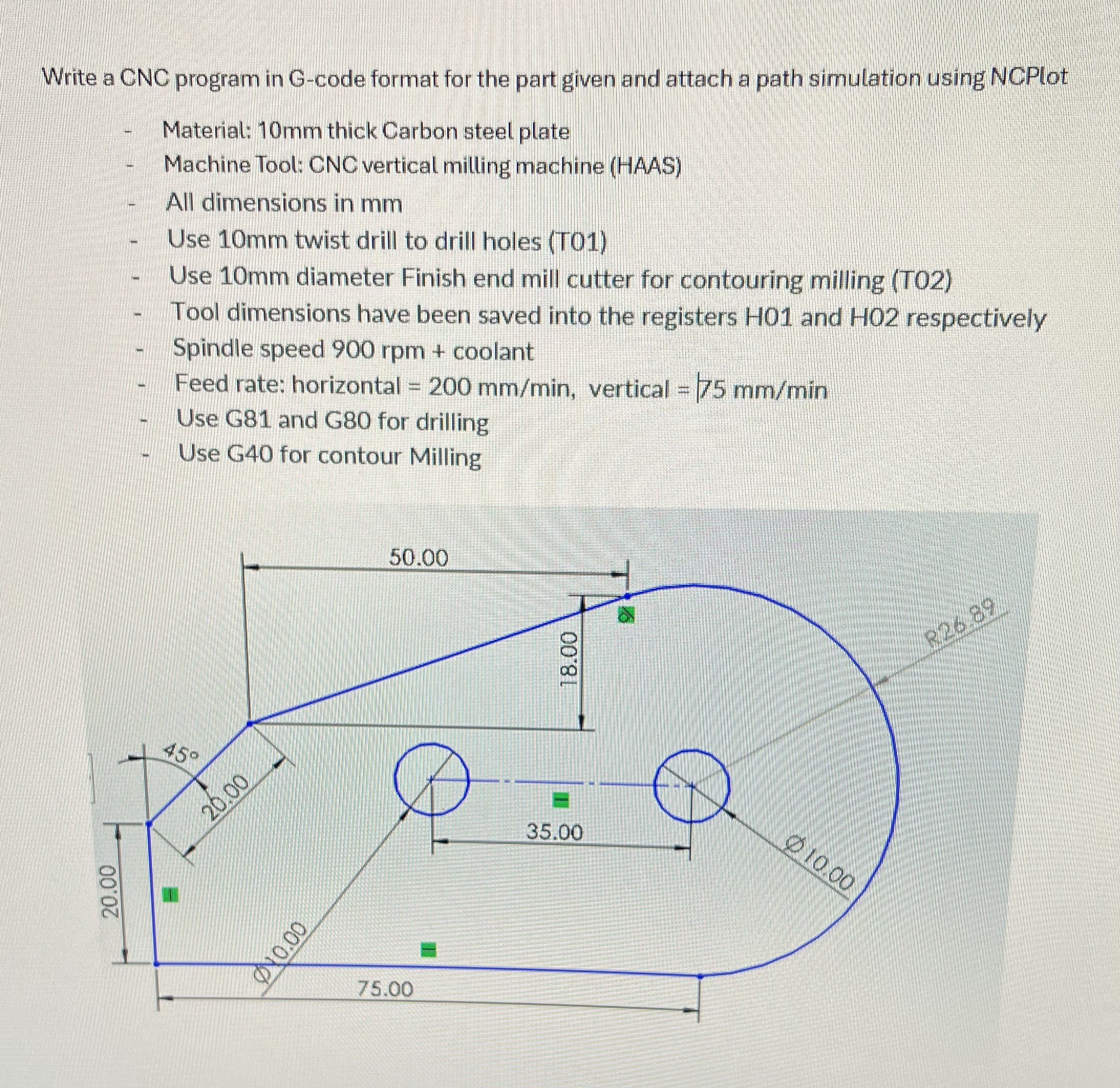

Write a CNC program in G$-$code format for the part given and attach a path simulation using NCPlot

Material: $10$ mm thick Carbon steel plate

Machine Tool: CNC vertical milling machine $($HAAS$)$

All dimensions in mm

Use $10$ mm twist drill to drill holes $($T$01)$

Use $10$ mm diameter Finish end mill cutter for contouring milling $($TO$2)$

Tool dimensions have been saved into the registers H$01$ and H$02$ respectively

Spindle speed $900rpm+$ coolant

Feed rate: horizontal $=200m\frac{m}{m}in,$ vertical $=75m\frac{m}{m}in$

Use G$81$ and G$80$ for drilling

Use G$40$ for contour Milling
