Question: Write the Mesh Equations for the Circuit shown below using the Standard ( Long ) Method. Solve the equations for Mesh Currents l 1 and

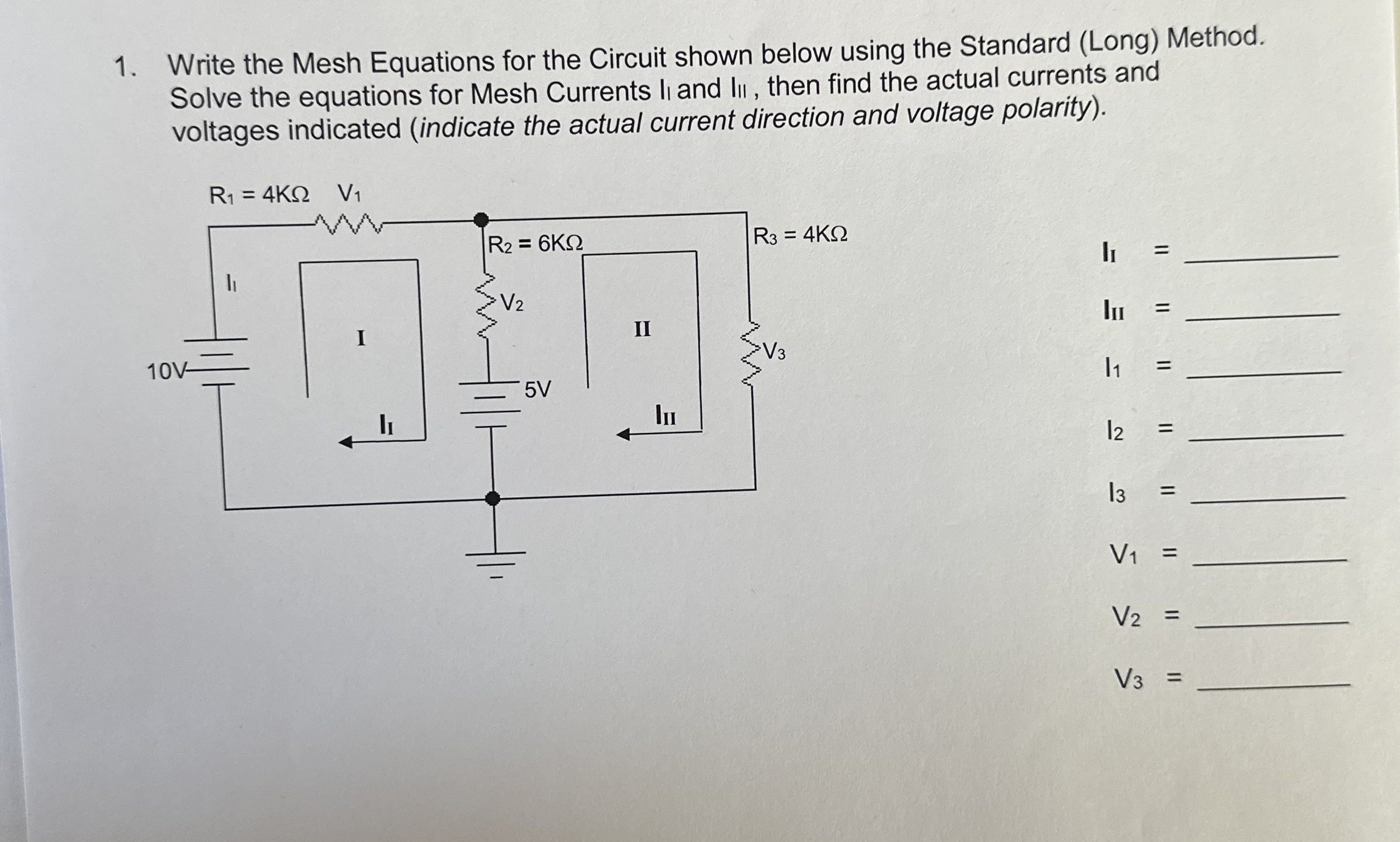

Write the Mesh Equations for the Circuit shown below using the Standard (Long) Method. Solve the equations for Mesh Currents l1 and lII, then find the actual currents and voltages indicated (indicate the actual current direction and voltage polarity).
II=
III=
I1=
I2=
I3=
V1=
V2=
V3=
Write the Mesh Equations for the Circuit shown

Step by Step Solution

There are 3 Steps involved in it
