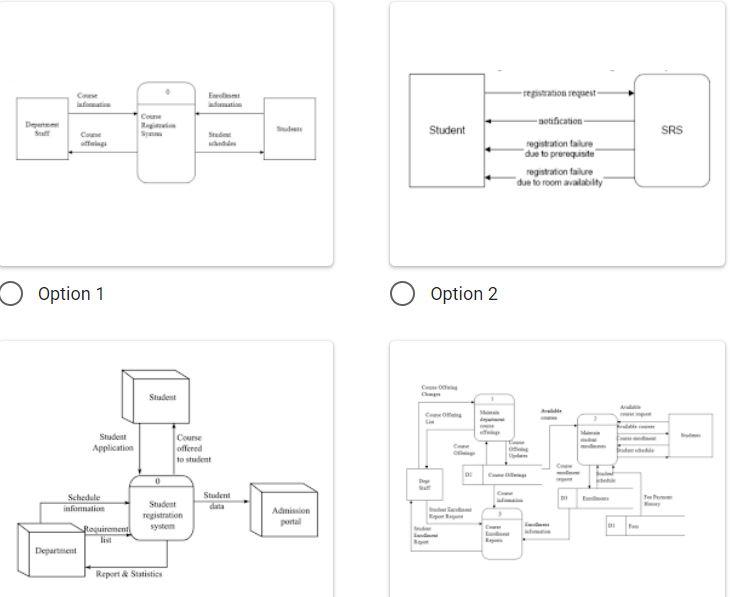

You have been requested to develop an automated Student Registration System for the university. This system will enable students to register on-line for sections each semester. During the registration period before each semester, the SRS will verify whether the student has satisfied the necessary prerequisites for each requested section by referring the students on-line transcript of classes completed and grades received. If the prerequisites for the requested sections are satisfied and there is room available in each of the sections, then the student is enrolled in the sections. Once a section is successfully registered, the system will notify the student. When a section is not registered, either because of prerequisite not verified or room not available, the system will also notify the student. Draw the context diagram of the system. (Note: right click on every image, then click "open image in new tab" so you can have a clearer view)

C E registration request Com C Student SRS notification registration failure due to prerequisite registration failure due to roomavality O Option 1 Option 2 Student CO Student Application CS offered to student 0 Schedule Student Yes Student registration system Admission portal Rocuirement Department Report & Statistics
