Engineering Mechanics Statics 11 Edition Russell C. Hibbeler - Solutions

Locate the centroid of the shaded area bounded by the parabola and the line y = a.
Locate the centroid of the quarter elliptical area.
Locate the centroid xc of the triangular area.
Locate the centroid of the shaded area.Given:a = 8 mb = 4 m
Locate the centroid xc of the shaded area. Solve the problem by evaluating the integrals using Simpson's rule.Given:
Locate the centroid yc of the shaded area. Solve the problem by evaluating the integrals using Simpson's rule.Given
The steel plate has thickness t and density ρ. Determine the location of its center of mass. Also compute the reactions at the pin and roller support. Units Used:kN = 103 NGiven:t = 0.3 m a = 2 mρ = 7850kg/m3b = 2 mc = 2 m
Locate the centroid xc of the shaded area.Given:a = 4 ftb = 4 ft
Locate the centroid yc of the shaded area.Given:a = 4 ftb = 4 ft
Locate the centroid xc of the shaded area.Given:a = 4 mb = 4 m
Locate the centroid yc of the shaded area.Given:a = 4 mb = 4 m
Locate the centroid xc of the shaded area.Given:a = 1 inb = 3 inc = 2 in
Locate the centroid yc of the shaded area.Given:a = 1 inb = 3 inc = 2 in
Locate the centroid xc of the shaded area.Given:a = 4 inb = 2 inc = 3 in
Locate the centroid yc of the shaded area.Given:a = 4 inb = 2 inc = 3 in
Determine the location rc of the centroid C of the cardioids, r = a(1 − cos θ).
Locate the centroid of the ellipsoid of revolution.
Locate the centroid zc of the very thin conical shell. Hint: Use thin ring elements having a center at (0, 0, z), radius y, and width dL = √(dy)2 +(dz)2.
Locate the centroid zc of the volume.Given:a = 2 ftb = 2 ft
Locate the centroid of the solid.
Locate the centroid of the quarter-cone.
Locate the center of mass xc of the hemisphere. The density of the material varies linearly from zero at the origin O to ρo at the surface. Hint: Choose a hemispherical shell element for integration
Locate the centroid zc of the right-elliptical cone.Given:a = 3 ftb = 4 ftc = 10 ft(x/b)2 + (y/a)2 =1
Locate the center of gravity zc of the frustum of the paraboloid. The material is homogeneous.Given:a = 1 mb = 0.5 mc = 0.3 m
Locate the center of gravity yc of the volume. The material is homogeneous.Given:a = 25 mmc = 50 mmd = 50 mm
Locate the center of gravity for the homogeneous half-cone.
Locate the centroid zc of the spherical segment.
Determine the location zc of the centroid for the tetrahedron. Suggestion: Use a triangular "plate" element parallel to the x-y plane and of thickness dz.
Determine the location (x, y) of the particle M1 so that the three particles, which lie in the x–y plane, have a center of mass located at the origin O.Given:M1 = 7 kgM2 = 3 kgM3 = 5 kga = 2 mb = 3 mc = 4 m
Locate the center of gravity (xc, yc, zc) of the four particles.Given:M1 = 2 lb a = 2 ftM2 = 3 lb b = 3 ftM3 = 1 lb c = −1 ftM4 = 1 lb d = 1 ftf = 4 ft e = 4 fth = −2 ft g = 2 fti = 2 ft
A rack is made from roll-formed sheet steel and has the cross section shown. Determine the location (xc, yc) of the centroid of the cross section. The dimensions are indicated at the center thickness of each segment.Given:a = 15 mmc = 80 mmd = 50 mme = 30 mm
The steel and aluminum plate assembly is bolted together and fastened to the wall. Each plate has a constant width w in the z direction and thickness t. If the density of A and B is ρs, and the density of C is ρal, determine the location xc, the center of mass. Neglect the size of the bolts.Units
The truss is made from five members, each having a length L and a mass density ρ.If the mass of the gusset plates at the joints and the thickness of the members can be neglected, determine the distance d to where the hoisting cable must be attached, so that the truss does not tip (rotate) when it
Locate the center of gravity (xc, yc, zc) of the homogeneous wire.Given:a = 300 mmb = 400 mm
Determine the location (xc, yc) of the center of gravity of the homogeneous wire bent in the form of a triangle. Neglect any slight bends at the corners. If the wire is suspended using a thread T attached to it at C, determine the angle of tilt AB makes with the horizontal when the wire is in
The three members of the frame each have weight density γ. Locate the position (xc, yc) of the center of gravity. Neglect the size of the pins at the joints and the thickness of the members. Also, calculate the reactions at the fixed support A.Given:γ = 4lb/ftP = 60 lba = 4 ftb = 3 ftc = 3 ftd =
Locate the center of gravity G(xc, yc) of the streetlight. Neglect the thickness of each segment. The mass per unit length of each segment is given.Given:a = 1 m ρ = AB 12kg/mb = 3 m ρ = BC 8kg/mc = 4 m ρ = CD 5kg/md = 1 m ρ = DE 2kg/me = 1 m f = 1.5 m
Determine the location yc of the centroid of the beam's cross-sectional area. Neglect the size of the corner welds at A and B for the calculation.Given:d1 = 50 mmd2 = 35 mmh = 110 mmt = 15 mm
The gravity wall is made of concrete. Determine the location (xc, yc) of the center of gravity G for the wall.Given:a = 0.6 mb = 2.4 mc = 0.6 md = 0.4 me = 3 mf = 1.2 m
Locate the centroid (xc, yc) of the shaded area.Given:a = 1 inb = 3 inc = 1 ind = 1 ine = 1 in
Locate the centroid (xc, yc) of the shaded area.Given:a = 1 inb = 6 inc = 3 ind = 3 in
Determine the location yc of the centroidal axis xc xc of the beam's cross-sectional area. Neglect the size of the corner welds at A and B for the calculation.Given:r = 50 mmt = 15 mma = 150 mmb = 15 mmc = 150 mm
Determine the location (xc, yc) of the centroid C of the area.Given:a = 6 inb = 6 inc = 3 ind = 6 in
Determine the location yc of the centroid C for a beam having the cross-sectional area shown. The beam is symmetric with respect to the y axis.Given:a = 2 inb = 1 inc = 2 ind = 1 ine = 3 inf = 1 in
The wooden table is made from a square board having weight W. Each of the legs has weight Wleg and length L. Determine how high its center of gravity is from the floor. Also, what is the angle, measured from the horizontal, through which its top surface can be tilted on two of its legs before it
Locate the centroid yc for the beam’s cross-sectional area.Given:a = 120 mmb = 240 mmc = 120 mm
Determine the location xc of the centroid C of the shaded area which is part of a circle having a radius r.
Locate the centroid yc for the strut’s cross-sectional area.Given:a = 40 mmb = 120 mmc = 60 mm
The “New Jersey” concrete barrier is commonly used during highway construction. Determine the location yc of its centroid.Given:a = 4 inb = 12 inc = 6 ind = 24 inθ1 = 75 degθ2 = 55 deg
The composite plate is made from both steel (A) and brass (B) segments. Determine the mass and location (xc, yc, zc) of its mass center G.Units Used:Mg = 1000 kgGiven:ρst = 7.85Mg/m3 a = 150 mm
Locate the centroid yc of the concrete beam having the tapered cross section shown.Given:a = 100 mmb = 360 mmc = 80 mmd = 300 mme = 300 mm
The anatomical center of gravity G of a person can be determined by using a scale and a rigid board having a uniform weight W1 and length l. With the person’s weight W known, the person lies down on the board and the scale reading P is recorded. From this show how to calculate the location xc of
The tank and compressor have a mass MT and mass center at GT and the motor has a mass MM and a mass center at GM. Determine the angle of tilt, θ , of the tank so that the unit will be on the verge of tipping over.Given:a = 300 mmb = 200 mmc = 350 mmd = 275 mmMT = 15 kgMM = 70 kg
Determine the distance h to which a hole of diameter d must be bored into the base of the cone so that the center of mass of the resulting shape is located at zc. The material has a density ρ.Given:d = 100 mmzc = 115 mmρ = 8mg/m3a = 150 mmb = 500 mm
Determine the distance to the centroid of the shape which consists of a cone with a hole of height h bored into its base.Given:d = 100 mmh = 50 mmρ = 8mg/m3a = 150 mmb = 500 mm
The sheet metal part has the dimensions shown. Determine the location (xc, yc, zc) of its centroid.Given:a = 3 inb = 4 inc = 6 in
The sheet metal part has a weight per unit area of and is supported by the smooth rod and at C. If the cord is cut, the part will rotate about the y axis until it reaches equilibrium. Determine the equilibrium angle of tilt, measured downward from the negative x axis, that AD makes with the -x
A toy skyrocket consists of a solid conical top of density ρt, a hollow cylinder of density ρc, and a stick having a circular cross section of density ρs. Determine the length of the stick, x, so that the center of gravity G of the skyrocket is located along line aa.Given:a = 3 mm
Determine the location (xc, yc) of the center of mass of the turbine and compressor assembly. The mass and the center of mass of each of the various components are indicated below.Given:a = 0.75 m M1 = 25 kgb = 1.25 m M2 = 80 kgc = 0.5 m M3 = 30 kgd = 0.75 m M4 = 105 kge = 0.85 mf = 1.30 mg = 0.95 m
The solid is formed by boring a conical hole into the hemisphere. Determine the distance zc to the center of gravity.
Determine the location xc of the centroid of the solid made from a hemisphere, cylinder, and cone.Given:a = 80 mmb = 60 mmc = 30 mmd = 30 mm
The buoy is made from two homogeneous cones each having radius r. Find the distance zc to the buoy's center of gravity G.Given:r = 1.5 fth = 1.2 fta = 4 ft
The buoy is made from two homogeneous cones each having radius r. If it is required that the buoy's center of gravity G be located at zc, determine the height h of the top cone.Given:zc = 0.5 ftr = 1.5 fta = 4 ft
Locate the center of mass zc of the forked lever, which is made from a homogeneous material and has the dimensions shown.Given:a = 0.5 inb = 2.5 inc = 2 ind = 3 ine = 0.5 in
A triangular plate made of homogeneous material has a constant thickness which is very small. If it is folded over as shown, determine the location yc of the plate's center of gravity G.Given:a = 6 inb = 3 inc = 1 ind = 3 ine = 1 inf = 3 in
A triangular plate made of homogeneous material has a constant thickness which is very small. If it is folded over as shown, determine the location zc of the plate's center of gravity G.Givena = 6 inb = 3 inc = 1 ind = 3 ine = 1 inf = 3 in
Each of the three homogeneous plates welded to the rod has a density ρ and a thickness a. Determine the length l of plate C and the angle of placement, θ, so that the center of mass of the assembly lies on the y axis. Plates A and B lie in the x–y and z–y planes, respectively.Units Used:Mg =
The assembly consists of a wooden dowel rod of length L and a tight-fitting steel collar. Determine the distance xc to its center of gravity if the specific weights of the materials are γw and γst. The radii of the dowel and collar are shown.Given:L = 20 inγw = 150lb/ft3γst = 490lb/ft3a = 5 inb
Determine the surface area and the volume of the ring formed by rotating the square about the vertical axis.Given:θ = 45 deg
The anchor ring is made of steel having specific weight γst. Determine the surface area of the ring. The cross section is circular as shown.Given:γst = 490 lb/ft3a = 4 inb = 8 in
Using integration, determine both the area and the distance yc to the centroid of the shaded area. Then using the second theorem of PappusGuldinus, determine the volume of the solid generated by revolving the shaded area about the x axis.Given:a = 1 ftb = 2 ftc = 2 ft
The grain bin of the type shown is manufactured by Grain Systems, Inc. Determine the required square footage of the sheet metal needed to form it, and also the maximum storage capacity (volume) within it.Given:a = 30 ftb = 20 ftc = 45 ft
Determine the surface area and the volume of the conical solid.
Sand is piled between two walls as shown. Assume the pile to be a quarter section of a cone and that ratio p of this volume is voids (air space). Use the second theorem of Pappus-Guldinus to determine the volume of sand.Given:r = 3 mh = 2 mp = 0.26
The rim of a flywheel has the cross section A-A shown. Determine the volume of material needed for its construction.Given:r = 300 mma = 20 mmb = 40 mmc = 20 mmd = 60 mm
The Gates Manufacturing Co. produces pulley wheels such as the one shown. Determine the weight of the wheel if it is made from steel having a specific weight γ.Given:a = 1 inc = 0.5 ind = 1 ine = 1 inf = 0.25 inb = 2(c + d + e)γ = 490lb/ft3
The Gates Manufacturing Co. produces pulley wheels such as the one shown. Determine the total surface area of the wheel in order to estimate the amount of paint needed to protect its surface from rust.Given:a = 1 inc = 0.5 ind = 1 ine = 1 inf = 0.25 inb = 2(c + d + e)
Determine the volume of material needed to make the casting.Given:r1 = 4 inr2 = 6 inr3 = r2 – r1
A circular sea wall is made of concrete. Determine the total weight of the wall if the concrete has a specific weight γc.Given:γc = 150lb/ft3a = 60 ftb = 15 ftc = 8 ftd = 30 ftθ = 50 deg
Determine the surface area of the tank, which consists of a cylinder and hemispherical cap.Given:a = 4 mb = 8 m
Determine the volume of the tank, which consists of a cylinder and hemispherical cap.Given:a = 4 mb = 8 m
Determine the surface area of the silo which consists of a cylinder and hemispherical cap. Neglect the thickness of the plates.Given:a = 10 ftb = 10 ftc = 80 ft
Determine the volume of the silo which consists of a cylinder and hemispherical cap. Neglect the thickness of the plates.Given:a = 10 ftb = 10 ftc = 80 ft
The process tank is used to store liquids during manufacturing. Estimate both the volume of the tank and its surface area. The tank has a flat top and the plates from which the tank is made have negligible thickness.Given:a = 4 mb = 6 mc = 3 m
Determine the height h to which liquid should be poured into the cup so that it contacts half the surface area on the inside of the cup. Neglect the cup's thickness for the calculation.Given:a = 30 mmb = 50 mmc = 10 mm
Using integration, compute both the area and the centroidal distance xc of the shaded region. Then, using the second theorem of Pappus–Guldinus, compute the volume of the solid generated by revolving the shaded area about the aa axis.Given:a = 8 inb = 8 in
Using integration, determine the area and the centroidal distance yc of the shaded area. Then, using the second theorem of Pappus–Guldinus, determine the volume of a solid formed by revolving the area about the x axis.Given:a = 0.5 ftb = 2 ftc = 1 ft
Determine the surface area of the roof of the structure if it is formed by rotating the parabola about the y axis.Given:a = 16 mb = 16 m

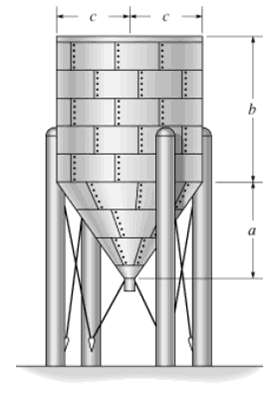

The suspension bunker is made from plates which are curved to the natural shape which a completely flexible membrane would take if subjected to a full load of coal. This curve may be approximated by a parabola, y/b = (x/a)2. Determine the weight of coal which the bunker would contain when
Determine the interior surface area of the brake piston. It consists of a full circular part. Its cross section is shown in the figure.Given:a = 40 mmb = 30 mmc = 20 mmd = 20 mme = 80 mmf = 60 mmg = 40 mm
Determine the magnitude of the resultant hydrostatic force acting on the dam and its location H, measured from the top surface of the water. The width of the dam is w; the mass density is ρw.Units Used:Mg = 103 kgMN = 106 NGiven:w = 8 mρw = 1 Mg/m3h = 6 mg = 9.81m/s2
The tank is filled with water to a depth d. Determine the resultant force the water exerts on side A and side B of the tank. If oil instead of water is placed in the tank, to what depth d should it reach so that it creates the same resultant forces? The densities are ρ0 and ρw.Given: kN = 103 Nd
The factor of safety for tipping of the concrete dam is defined as the ratio of the stabilizing moment about O due to the dam’s weight divided by the overturning moment about O due to the water pressure. Determine this factor if the concrete has specific weight γconc and water has specific
The concrete "gravity" dam is held in place by its own weight. If the density of concrete is ρc and water has a density ρw, determine the smallest dimension d that will prevent the dam from overturning about its end A.Units Used:Mg = 103 kgGiven:ρc = 2.5Mg/m3ρw = 1.0Mg/m3h = 6 mg = 9.81m/s2
The concrete dam is designed so that its face AB has a gradual slope into the water as shown. Because of this, the frictional force at the base BD of the dam is increased due to the hydrostatic force of the water acting on the dam.Calculate the hydrostatic force acting on the face AB of the dam.
The symmetric concrete “gravity” dam is held in place by its own weight. If the density of concrete is ρc and water has a density ρw, determine the smallest distance d at its base that will prevent the dam from overturning about its end A. The dam has a width w.Units Used:Mg = 103 kg
The tank is used to store a liquid having a specific weight γ. If it is filled to the top, determine the magnitude of force the liquid exerts on each of its two sides ABDC and BDFE.Units used:kip = 103 lbGiven:γ = 80lb/ft3a = 6 ftb = 6 ftc = 12 ftd = 8 fte = 4 ft
The rectangular gate of width w is pinned at its center A and is prevented from rotating by the block at B. Determine the reactions at these supports due to hydrostatic pressure.Units Used:Mg = 103 kg kN = 103 NGiven:a = 1.5 m ρw = 1.0Mg/m3b = 6 mw = 2 m g = 9.81m/s2
The gate AB has width w. Determine the horizontal and vertical components of force acting on the pin at B and the vertical reaction at the smooth support A.The density of water is ρw.Units Used:Mg = 103 kgkN = 103 NMN = 106 NGiven:w = 8 mρw = 1.0Mg/m3a = 5 mb = 4 mc = 3 mg = 9.81m/s2
The storage tank contains oil having a specific weight γ. If the tank has width w, calculate the resultant force acting on the inclined side BC of the tank, caused by the oil, and specify its location along BC, measured from B. Also compute the total resultant force acting on the bottom of the
